Description
Condition:
New

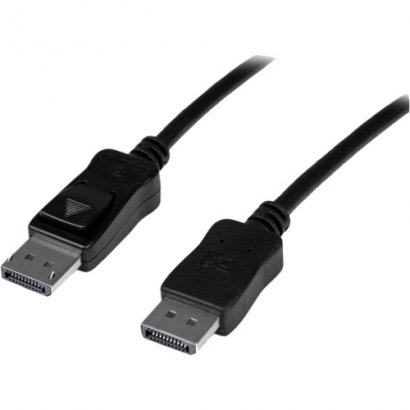

Connect DisplayPort®-equipped devices up to 15m away with no signal loss. The DISPL15MA 15m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 50 feet (15m) between your DisplayPort-enabled devices - more than double the DisplayPort connection distance limitation of 16ft, with no signal loss. This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed. The 15m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560?1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly. This 15-meter Active DisplayPort cable is backed by StarTech.com''s 2-year Warranty. Please Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.
| Product Type |
A/V Cable
|
| Brand Name |
StarTech.com
|
| Manufacturer |
StarTech.com
|
| Product Name |
15m Active DisplayPort Cable - M/M
|
| Manufacturer Part Number |
DISPL15MA
|
| Manufacturer Website Address |
http://www.startech.com
|
| Packaged Quantity |
1
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Color |
Black
|
| Weight (Approximate) |
1.42 lb
|
| Connector on First End |
1 x 20-pin DisplayPort Male Digital Audio/Video
|
| Connector on Second End |
1 x 20-pin DisplayPort Male Digital Audio/Video
|
| Cable Type |
DisplayPort
|
| Connector Plating |
Nickel Plated
|
| Features |
Active
Signal Booster
|
| Device Supported |
Audio/Video Device
Audio Amplifier
|
| Shielding |
Yes
|
| Cable Length |
49.21 ft
|
| Limited Warranty |
2 Year
|
Specifications
| General Information |
| Product Type |
A/V Cable |
| Brand Name |
StarTech.com |
| Manufacturer |
StarTech.com |
| Product Name |
15m Active DisplayPort Cable - M/M |
| Manufacturer Part Number |
DISPL15MA |
| Manufacturer Website Address |
http://www.startech.com |
| Packaged Quantity |
1 |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Physical Characteristics |
| Color |
Black |
| Weight (Approximate) |
1.42 lb |
| Technical Information |
| Connector on First End |
1 x 20-pin DisplayPort Male Digital Audio/Video |
| Connector on Second End |
1 x 20-pin DisplayPort Male Digital Audio/Video |
| Cable Type |
DisplayPort |
| Connector Plating |
Nickel Plated |
| Features |
Active |
| Features |
Signal Booster |
| Device Supported |
Audio/Video Device |
| Device Supported |
Audio Amplifier |
| Shielding |
Yes |
| Cable Length |
49.21 ft |
| Warranty |
| Limited Warranty |
2 Year |
|
