Description
Condition:
New

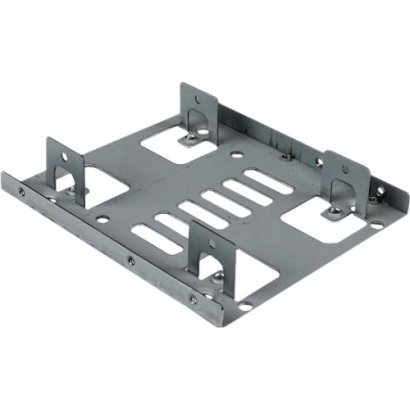

Mount two 2.5in SATA SSDs/HDDs into a single 3.5in drive bay. The BRACKET25X2 Dual hard drive mounting bracket kit enables you to maximize the internal mounting space of your computer, by installing two 2.5in SATA hard drives (HDD) or solid state drives (SSD) into a single 3.5in mounting bay. The bracket can be used with IDE drives using our 2.5in to 3.5in IDE Hard Drive cable adapter (IDE4044).For a hassle-free installation, the hard drive mounting kit includes all required data and power cabling for both SATA drives. The BRACKET25X2 features solid steel construction, and is backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Product Type |
Drive Bay Adapter
|
| Brand Name |
StarTech.com
|
| Manufacturer |
StarTech.com
|
| Product Name |
Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket
|
| Manufacturer Part Number |
BRACKET25X2
|
| Manufacturer Website Address |
http://www.startech.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket
- 1 x SATA Power Y Cable
- 2 x SATA DATA Cables
|
| Wireless LAN |
No
|
| Compatible Drive Bay Width |
3.5"
|
| Height |
0.9"
|
| Width |
4"
|
| Depth |
4.6"
|
| Form Factor |
Internal
|
| Weight (Approximate) |
5.29 oz
|
| Number of Total Expansion Bays |
2
|
| Number of 3.5" Bays |
No
|
| Number of 5.25" Bays |
No
|
| Number of 2.5" Bays |
2
|
| Number of 2.5"/3.5" Bays |
No
|
| Number of 1.8" Bays |
No
|
| Drive Interface |
Serial ATA
|
| Limited Warranty |
Lifetime
|
Specifications
| General Information |
| Product Type |
Drive Bay Adapter |
| Brand Name |
StarTech.com |
| Manufacturer |
StarTech.com |
| Product Name |
Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket |
| Manufacturer Part Number |
BRACKET25X2 |
| Manufacturer Website Address |
http://www.startech.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket
- 1 x SATA Power Y Cable
- 2 x SATA DATA Cables
|
| Network & Communication |
| Wireless LAN |
No |
| Physical Characteristics |
| Compatible Drive Bay Width |
3.5" |
| Height |
0.9" |
| Width |
4" |
| Depth |
4.6" |
| Form Factor |
Internal |
| Weight (Approximate) |
5.29 oz |
| I/O Expansions |
| Number of Total Expansion Bays |
2 |
| Number of 3.5" Bays |
No |
| Number of 5.25" Bays |
No |
| Number of 2.5" Bays |
2 |
| Number of 2.5"/3.5" Bays |
No |
| Number of 1.8" Bays |
No |
| Interfaces/Ports |
| Drive Interface |
Serial ATA |
| Warranty |
| Limited Warranty |
Lifetime |
|
