Description
Condition:
New

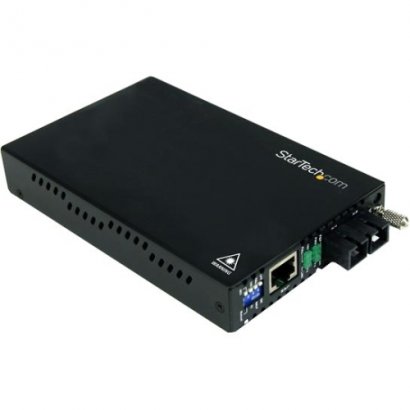

Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber. The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles). A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required. For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Product Type |
Transceiver/Media Converter
|
| Brand Name |
StarTech.com
|
| Manufacturer |
StarTech.com
|
| Product Name |
10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
|
| Manufacturer Part Number |
ET90110SC2
|
| Manufacturer Website Address |
http://www.startech.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
- 1 x Universal Power Adapter
- 1 x Instruction Manual
|
| Number of Network (RJ-45) Ports |
1
|
| Network (RJ-45) |
Yes
|
| Number of SC Ports |
1
|
| Total Number of Ports |
2
|
| Media Type Supported |
Optical Fiber
Twisted Pair
|
| Fiber Mode Supported |
Multi-mode
|
| Maximum Distance Supported |
1.24 Mile
|
| Height |
0.8"
|
| Width |
3.7"
|
| Depth |
6.3"
|
| Form Factor |
Desktop
Rack-mountable
|
| Weight (Approximate) |
1.32 lb
|
| Network Technology |
10/100Base-TX
100Base-FX
|
| Limited Warranty |
2 Year
|
Specifications
| General Information |
| Product Type |
Transceiver/Media Converter |
| Brand Name |
StarTech.com |
| Manufacturer |
StarTech.com |
| Product Name |
10/100 Mbps Multi Mode Fiber Media Converter SC 2 km |
| Manufacturer Part Number |
ET90110SC2 |
| Manufacturer Website Address |
http://www.startech.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
- 1 x Universal Power Adapter
- 1 x Instruction Manual
|
| Interfaces/Ports |
| Number of Network (RJ-45) Ports |
1 |
| Network (RJ-45) |
Yes |
| Number of SC Ports |
1 |
| Total Number of Ports |
2 |
| Media & Performance |
| Media Type Supported |
Optical Fiber |
| Media Type Supported |
Twisted Pair |
| Fiber Mode Supported |
Multi-mode |
| Maximum Distance Supported |
1.24 Mile |
| Physical Characteristics |
| Height |
0.8" |
| Width |
3.7" |
| Depth |
6.3" |
| Form Factor |
Desktop |
| Form Factor |
Rack-mountable |
| Weight (Approximate) |
1.32 lb |
| Network & Communication |
| Network Technology |
10/100Base-TX |
| Network Technology |
100Base-FX |
| Warranty |
| Limited Warranty |
2 Year |
|
