Description
Condition:
New

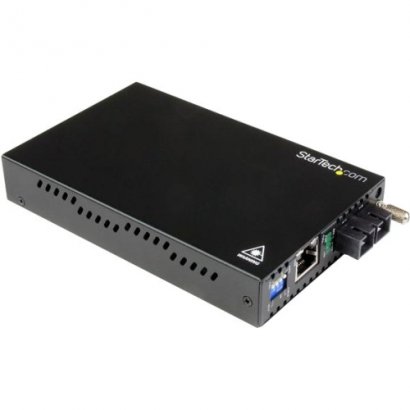

Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40 km over Single Mode SC fiber. The ET91000SM402 1000 Mbps Gigabit Single Mode Fiber Media Converter SC (40 km) lets you extend a Gigabit Ethernet network over single mode fiber by up to 40km (25 miles). A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required. For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Product Type |
Transceiver/Media Converter
|
| Brand Name |
StarTech.com
|
| Manufacturer |
StarTech.com
|
| Product Name |
Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps
|
| Manufacturer Part Number |
ET91000SM402
|
| Manufacturer Website Address |
http://www.startech.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps
- 1 x Universal Power Adapter
- 1 x Instruction Manual
|
| Number of Network (RJ-45) Ports |
1
|
| Network (RJ-45) |
Yes
|
| Number of SC Ports |
1
|
| Total Number of Ports |
2
|
| Media Type Supported |
Twisted Pair
Optical Fiber
|
| Fiber Mode Supported |
Single-mode
|
| Maximum Distance Supported |
24.85 Mile
|
| Height |
0.8"
|
| Width |
3.7"
|
| Depth |
6.3"
|
| Form Factor |
Rack-mountable
Desktop
|
| Weight (Approximate) |
1.32 lb
|
| Network Technology |
10/100/1000Base-T
1000Base-SX/LX
|
| Limited Warranty |
2 Year
|
Specifications
| General Information |
| Product Type |
Transceiver/Media Converter |
| Brand Name |
StarTech.com |
| Manufacturer |
StarTech.com |
| Product Name |
Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps |
| Manufacturer Part Number |
ET91000SM402 |
| Manufacturer Website Address |
http://www.startech.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps
- 1 x Universal Power Adapter
- 1 x Instruction Manual
|
| Interfaces/Ports |
| Number of Network (RJ-45) Ports |
1 |
| Network (RJ-45) |
Yes |
| Number of SC Ports |
1 |
| Total Number of Ports |
2 |
| Media & Performance |
| Media Type Supported |
Twisted Pair |
| Media Type Supported |
Optical Fiber |
| Fiber Mode Supported |
Single-mode |
| Maximum Distance Supported |
24.85 Mile |
| Physical Characteristics |
| Height |
0.8" |
| Width |
3.7" |
| Depth |
6.3" |
| Form Factor |
Rack-mountable |
| Form Factor |
Desktop |
| Weight (Approximate) |
1.32 lb |
| Network & Communication |
| Network Technology |
10/100/1000Base-T |
| Network Technology |
1000Base-SX/LX |
| Warranty |
| Limited Warranty |
2 Year |
|
