Description
Condition:
New

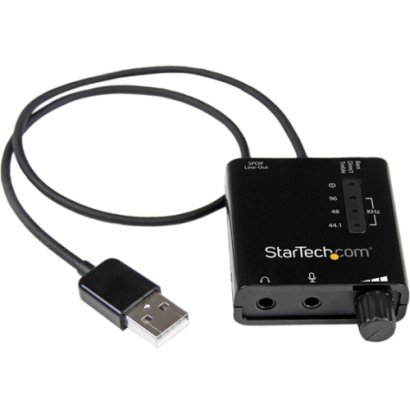

Add an SPDIF digital audio output and standard 3.5mm audio/microphone connections to your system through USB. The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an internal sound card without having to open the computer case.For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for both playback and recording, and a 3.5mm S/PDIF port with support for Dolby® Digital 5.1 surround sound (AC3) and DTS® pass-through (Note: 5.1 surround sound is supported in Windows® only).This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone. Also a convenient external volume control for quick adjustments, a hardware EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate.Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Product Type |
External Sound Box
|
| Brand Name |
StarTech.com
|
| Manufacturer |
StarTech.com
|
| Product Name |
USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio
|
| Manufacturer Part Number |
ICUSBAUDIO2D
|
| Manufacturer Website Address |
http://www.startech.com
|
| Packaged Quantity |
1
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio
- 1 x Software CD
- 1 x Instruction Manual
|
| Height |
0.6"
|
| Width |
1.8"
|
| Form Factor |
External
|
| Thickness |
1.9"
|
| Weight (Approximate) |
1.30 oz
|
| Audio Processor |
VIA VT1630A
|
| Sampling Rate |
24 bit 96 kHz 5.1-channel
|
| Signal to Noise Ratio (SNR) |
91 dB - (A-weighting)
|
| Sound Channels |
5.1
|
| Host Interface |
USB 2.0
|
| Interfaces/Ports |
1 x 3.5mm Mini Jack - (3 Position) Female
1 x 3.5mm Mini Jack - (4 Position) Female
1 x 3.5mm - Toslink (SPDIF; Optical) Female
|
| Limited Warranty |
2 Year
|
Specifications
| General Information |
| Product Type |
External Sound Box |
| Brand Name |
StarTech.com |
| Manufacturer |
StarTech.com |
| Product Name |
USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio |
| Manufacturer Part Number |
ICUSBAUDIO2D |
| Manufacturer Website Address |
http://www.startech.com |
| Packaged Quantity |
1 |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio
- 1 x Software CD
- 1 x Instruction Manual
|
| Physical Characteristics |
| Height |
0.6" |
| Width |
1.8" |
| Form Factor |
External |
| Thickness |
1.9" |
| Weight (Approximate) |
1.30 oz |
| Technical Information |
| Audio Processor |
VIA VT1630A |
| Sampling Rate |
24 bit 96 kHz 5.1-channel |
| Signal to Noise Ratio (SNR) |
91 dB - (A-weighting) |
| Sound Channels |
5.1 |
| Host Interface |
USB 2.0 |
| Interfaces/Ports |
| Interfaces/Ports |
1 x 3.5mm Mini Jack - (3 Position) Female |
| Interfaces/Ports |
1 x 3.5mm Mini Jack - (4 Position) Female |
| Interfaces/Ports |
1 x 3.5mm - Toslink (SPDIF; Optical) Female |
| Warranty |
| Limited Warranty |
2 Year |
|
