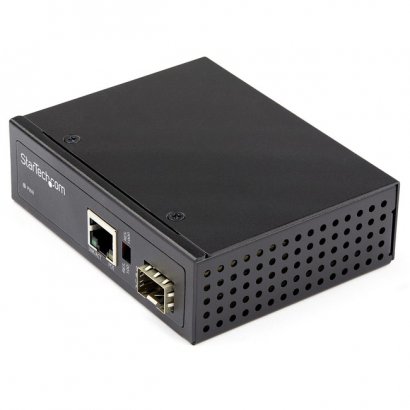

StarTech.com Transceiver/Media Converter IMC1GSFP60W

This open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector It converts a fiber network link to a PoE-enabled copper RJ45 Ethernet connection to provide data and power to remote PoE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require PoE and connectivity over long distances. Designed for Harsh Environments This 60W media converter can be installed almost anywhere you need it as it has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options. OPERATING TEMPERATURE STORAGE TEMPERATURE -40°C to 75°C -40°C to 85°C -40°F to 167°F -40°F to 185°F Up to 60 Watts of Power for Connected Devices 60 watts of available support a wide range of PD devices such as: Pan-and-Tilt Cameras Lighting Cameras Sensors WiFi Access Points Open SFP Slot to Leverage Your Current Infrastructure The Gigabit fiber media converter provides a cost-efficient way to connect high powered devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements. Dual Power Inputs Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The IMC1GSFP60W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Network (RJ-45)	Yes
Number of PoE (RJ-45) Ports	1
Total Number of Ports	1
Product Type	Transceiver/Media Converter
Manufacturer Part Number	IMC1GSFP60W
Manufacturer Website Address	http://www.startech.com
Manufacturer	StarTech.com
Product Name	Transceiver/Media Converter
Brand Name	StarTech.com
Expansion Slot Type	SFP (mini-GBIC)
Number of Total Expansion Slots	1
Number of SFP Slots	1
Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode Single-mode
Package Contents	Transceiver/Media Converter Mounting Hardware Kit Quick-Start Guide Terminal Block to Barrel Power Connector Adapter Terminal Block
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Certification	RoHS WEEE
Network Technology	1000Base-T 1000Base-TX 100Base-TX 100Base-T
Ethernet Technology	Gigabit Ethernet
Weight (Approximate)	5.40 oz
Form Factor	DIN Rail Mountable Wall Mountable
Height	1.3"
Width	3.2"
Depth	4.1"
Power Source	PoE+
Power Consumption	60 W
Plug/Connector Type	Terminal Block (3 Wire) Type N
Limited Warranty	2 Year

Interfaces/Ports
Network (RJ-45)	Yes
Number of PoE (RJ-45) Ports	1
Total Number of Ports	1
General Information
Product Type	Transceiver/Media Converter
Manufacturer Part Number	IMC1GSFP60W
Manufacturer Website Address	http://www.startech.com
Manufacturer	StarTech.com
Product Name	Transceiver/Media Converter
Brand Name	StarTech.com
I/O Expansions
Expansion Slot Type	SFP (mini-GBIC)
Number of Total Expansion Slots	1
Number of SFP Slots	1
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Mode Supported	Single-mode
Miscellaneous
Package Contents	Transceiver/Media Converter Mounting Hardware Kit Quick-Start Guide Terminal Block to Barrel Power Connector Adapter Terminal Block
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Certification	RoHS
Environmental Certification	WEEE
Network & Communication
Network Technology	1000Base-T
Network Technology	1000Base-TX
Network Technology	100Base-TX
Network Technology	100Base-T
Ethernet Technology	Gigabit Ethernet
Physical Characteristics
Weight (Approximate)	5.40 oz
Form Factor	DIN Rail Mountable
Form Factor	Wall Mountable
Height	1.3"
Width	3.2"
Depth	4.1"
Power Description
Power Source	PoE+
Power Consumption	60 W
Plug/Connector Type	Terminal Block (3 Wire)
Plug/Connector Type	Type N
Warranty
Limited Warranty	2 Year
