Description
Condition:
New

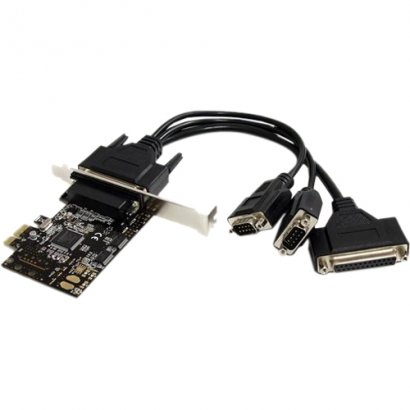

Add a parallel port and two RS-232 serial ports to your PC through a PCI-Express expansion slot. The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.This product is a replacement for our PEX2S1P552B card.Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
| Ports |
2 x 9-pin DB-9 Male RS-232 Serial External
1 x 25-pin DB-25 Female Parallel External
|
| Product Type |
Serial/Parallel Combo Adapter
|
| Brand Name |
StarTech.com
|
| Manufacturer |
StarTech.com
|
| Product Name |
2S1P PCI Express Serial Parallel Combo Card
|
| Manufacturer Part Number |
PEX2S1P553B
|
| Manufacturer Website Address |
http://www.startech.com
|
| Packaged Quantity |
1
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- 2S1P PCI Express Serial Parallel Combo Card
- 1 x DB9 Breakout Cable
- 1 x Full Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
|
| Height |
3.1"
|
| Width |
3.7"
|
| Form Factor |
Low-profile Plug-in Card
|
| Thickness |
910 mil
|
| Weight (Approximate) |
1.76 oz
|
| Data Transfer Rate |
250 Kbps Serial Port
1.50 Mbps Parallel Port
|
| Host Interface |
PCI Express x1
|
| Limited Warranty |
Lifetime
|
Specifications
| Interfaces/Ports |
| Ports |
2 x 9-pin DB-9 Male RS-232 Serial External |
| Ports |
1 x 25-pin DB-25 Female Parallel External |
| General Information |
| Product Type |
Serial/Parallel Combo Adapter |
| Brand Name |
StarTech.com |
| Manufacturer |
StarTech.com |
| Product Name |
2S1P PCI Express Serial Parallel Combo Card |
| Manufacturer Part Number |
PEX2S1P553B |
| Manufacturer Website Address |
http://www.startech.com |
| Packaged Quantity |
1 |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- 2S1P PCI Express Serial Parallel Combo Card
- 1 x DB9 Breakout Cable
- 1 x Full Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
|
| Physical Characteristics |
| Height |
3.1" |
| Width |
3.7" |
| Form Factor |
Low-profile Plug-in Card |
| Thickness |
910 mil |
| Weight (Approximate) |
1.76 oz |
| Technical Information |
| Data Transfer Rate |
250 Kbps Serial Port |
| Data Transfer Rate |
1.50 Mbps Parallel Port |
| Host Interface |
PCI Express x1 |
| Warranty |
| Limited Warranty |
Lifetime |
|
