Description
Condition:
New

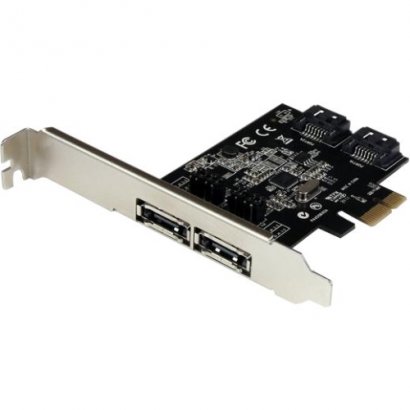

Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot.The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
| Ports |
2 x 7-pin Female Serial ATA Internal
2 x 7-pin Female External SATA
|
| Product Type |
Serial ATA Controller
|
| Brand Name |
StarTech.com
|
| Manufacturer |
StarTech.com
|
| Product Name |
PCIe SATA Controller
|
| Manufacturer Part Number |
PEXESAT322I
|
| Manufacturer Website Address |
http://www.startech.com
|
| Packaged Quantity |
1
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
WEEE
|
| Package Contents |
- PCIe SATA Controller
- Low Profile Bracket
- Driver CD
- Instruction Manual
|
| Height |
2.6"
|
| Width |
4.8"
|
| Form Factor |
Plug-in Card
|
| Dimensions |
2.6" Height x 4.8" Width x 0.8" Thickness
|
| Thickness |
800 mil
|
| Weight (Approximate) |
2.10 oz
|
| Drive Type |
Serial ATA/600
|
| Data Transfer Rate |
6 Gbps
|
| Host Interface |
PCI Express x1
|
| Limited Warranty |
2 Year
|
Specifications
| Interfaces/Ports |
| Ports |
2 x 7-pin Female Serial ATA Internal |
| Ports |
2 x 7-pin Female External SATA |
| General Information |
| Product Type |
Serial ATA Controller |
| Brand Name |
StarTech.com |
| Manufacturer |
StarTech.com |
| Product Name |
PCIe SATA Controller |
| Manufacturer Part Number |
PEXESAT322I |
| Manufacturer Website Address |
http://www.startech.com |
| Packaged Quantity |
1 |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Green Compliance Certificate/Authority |
WEEE |
| Package Contents |
- PCIe SATA Controller
- Low Profile Bracket
- Driver CD
- Instruction Manual
|
| Physical Characteristics |
| Height |
2.6" |
| Width |
4.8" |
| Form Factor |
Plug-in Card |
| Dimensions |
2.6" Height x 4.8" Width x 0.8" Thickness |
| Thickness |
800 mil |
| Weight (Approximate) |
2.10 oz |
| Technical Information |
| Drive Type |
Serial ATA/600 |
| Data Transfer Rate |
6 Gbps |
| Host Interface |
PCI Express x1 |
| Warranty |
| Limited Warranty |
2 Year |
|
