Description
Condition:
New

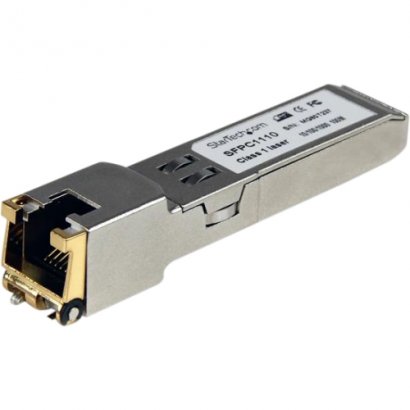

Add support for 10/100/1000 Mbps RJ45 copper Ethernet connections to networking equipment with spare SFP slots. The SFPC1110 Cisco Compatible Gigabit RJ45 Copper SFP Transceiver Module (Mini-GBIC) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a copper Ethernet port on your 10/100/1000 Base-T networking equipment.Featuring 10/100/1000 Mbps Auto-negotiation at distances up to 100m (330 feet), this Ethernet SFP module can be installed into any fiber networking devices with an MSA or Cisco compliant SFP port. Delivering convenience and scalability, this copper transceiver is fully hot-pluggable, allowing you to install the module without interrupting network traffic or requiring a device reboot.This SFP module is compatible with the Cisco SFP-GE-T transceiver.Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Product Type |
SFP (mini-GBIC)
|
Brand Name |
StarTech.com
|
Manufacturer |
StarTech.com
|
Product Name |
RJ45 Gigabit Copper SFP Transceiver Module - Mini-GBIC 100m
|
Manufacturer Part Number |
SFPC1110
|
Manufacturer Website Address |
http://www.startech.com
|
Green Compliant |
Yes
|
Green Compliance Certificate/Authority |
RoHS
|
Compatibility |
MSA Compliant
|
Data Transfer Rate |
10 Mbps Ethernet
100 Mbps Fast Ethernet
1.25 Gbps Gigabit Ethernet
|
Connectivity Media |
Twisted Pair 10/100/1000Base-T
|
Dimensions |
0.6" Height x 0.4" Width x 2.2" Depth
|
Weight (Approximate) |
0.88 oz
|
Application/Usage |
Data Networking
|
Interfaces/Ports |
1 x 10/100/1000Base-T LAN
|
Interfaces/Ports Details |
1 x RJ-45 Female 10/100/1000Base-T Network Auto-negotiation/MDI/MDI-X LAN
|
Limited Warranty |
3 Year
|
Specifications
General Information |
Product Type |
SFP (mini-GBIC) |
Brand Name |
StarTech.com |
Manufacturer |
StarTech.com |
Product Name |
RJ45 Gigabit Copper SFP Transceiver Module - Mini-GBIC 100m |
Manufacturer Part Number |
SFPC1110 |
Manufacturer Website Address |
http://www.startech.com |
Miscellaneous |
Green Compliant |
Yes |
Green Compliance Certificate/Authority |
RoHS |
Compatibility |
MSA Compliant |
Media & Performance |
Data Transfer Rate |
10 Mbps Ethernet |
Data Transfer Rate |
100 Mbps Fast Ethernet |
Data Transfer Rate |
1.25 Gbps Gigabit Ethernet |
Connectivity Media |
Twisted Pair 10/100/1000Base-T |
Physical Characteristics |
Dimensions |
0.6" Height x 0.4" Width x 2.2" Depth |
Weight (Approximate) |
0.88 oz |
Technical Information |
Application/Usage |
Data Networking |
Interfaces/Ports |
Interfaces/Ports |
1 x 10/100/1000Base-T LAN |
Interfaces/Ports Details |
1 x RJ-45 Female 10/100/1000Base-T Network Auto-negotiation/MDI/MDI-X LAN |
Warranty |
Limited Warranty |
3 Year |
|
