Description
Condition:
New

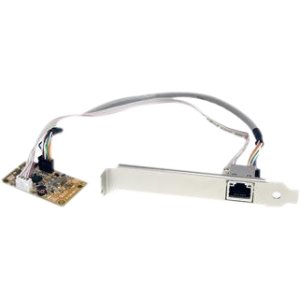

Add a Gigabit RJ45 port through a Mini PCI Express slot. The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Number of Network (RJ-45) Ports |
1
|
| Network (RJ-45) |
Yes
|
| Total Number of Ports |
1
|
| Host Interface |
PCI Express
|
| Product Type |
Gigabit Ethernet Card
|
| Brand Name |
StarTech.com
|
| Manufacturer |
StarTech.com
|
| Product Name |
Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
|
| Manufacturer Part Number |
ST1000SMPEX
|
| Manufacturer Website Address |
http://www.startech.com
|
| Packaged Quantity |
1
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
- 1 x RJ45 Daughter Board
- 1 x Full and Low Profile Installation Brackets
- 1 x Driver CD
- 1 x Instruction Manual
|
| Network Technology |
10/100/1000Base-T
|
| Card Height |
Low-profile
|
| Height |
1.2"
|
| Width |
2"
|
| Form Factor |
Plug-in Card
|
| Thickness |
160 mil
|
| Weight (Approximate) |
5.29 oz
|
| Limited Warranty |
2 Year
|
Specifications
| Interfaces/Ports |
| Number of Network (RJ-45) Ports |
1 |
| Network (RJ-45) |
Yes |
| Total Number of Ports |
1 |
| Host Interface |
PCI Express |
| General Information |
| Product Type |
Gigabit Ethernet Card |
| Brand Name |
StarTech.com |
| Manufacturer |
StarTech.com |
| Product Name |
Mini PCI Express Gigabit Ethernet Network Adapter NIC Card |
| Manufacturer Part Number |
ST1000SMPEX |
| Manufacturer Website Address |
http://www.startech.com |
| Packaged Quantity |
1 |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
- 1 x RJ45 Daughter Board
- 1 x Full and Low Profile Installation Brackets
- 1 x Driver CD
- 1 x Instruction Manual
|
| Network & Communication |
| Network Technology |
10/100/1000Base-T |
| Physical Characteristics |
| Card Height |
Low-profile |
| Height |
1.2" |
| Width |
2" |
| Form Factor |
Plug-in Card |
| Thickness |
160 mil |
| Weight (Approximate) |
5.29 oz |
| Warranty |
| Limited Warranty |
2 Year |
|
