Description
Condition:
New

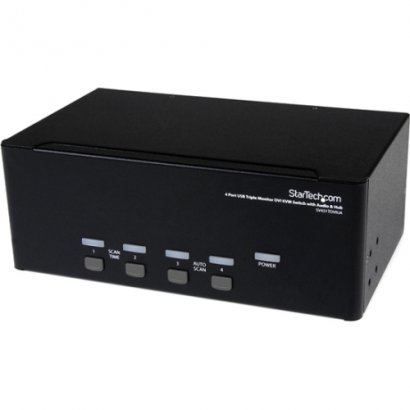

Switch between four triple head computers, while sharing three DVI displays, speakers & mic, USB Keyboard/Mouse, and USB 2.0 peripherals. The SV431TDVIUA 4-Port Triple Monitor DVI USB KVM Switch allows 4 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam. The Triple DVI KVM switch enables you to switch back and forth between 4 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple DVI KVM switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.The SV431TDVIUA 4-Port Triple Monitor DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.PLEASE NOTE: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended, wherever possible, to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact our technical support team for assistance identifying your source.
| USB |
Yes
|
| DVI |
Yes
|
| Number of USB Ports |
8
|
| Number of DVI Ports |
15
|
| Product Type |
KVM Switchbox
|
| Brand Name |
StarTech.com
|
| Manufacturer |
StarTech.com
|
| Product Name |
4 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub
|
| Manufacturer Part Number |
SV431TDVIUA
|
| Manufacturer Website Address |
http://www.startech.com
|
| Packaged Quantity |
1
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- 4 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub
- 4 x Rubber Foot Pads
- 1 x Universal Power Adapter (NA/UK/EU)
- 1 x User Manual
|
| Height |
3.2"
|
| Width |
8.6"
|
| Depth |
5.1"
|
| Form Factor |
Rack-mountable
|
| Weight (Approximate) |
3.30 lb
|
| Number of Computers Supported |
4
|
| Maximum Video Resolution |
1920 x 1200
|
| Graphic Mode |
WUXGA
|
| Limited Warranty |
3 Year
|
Specifications
| Interfaces/Ports |
| USB |
Yes |
| DVI |
Yes |
| Number of USB Ports |
8 |
| Number of DVI Ports |
15 |
| General Information |
| Product Type |
KVM Switchbox |
| Brand Name |
StarTech.com |
| Manufacturer |
StarTech.com |
| Product Name |
4 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub |
| Manufacturer Part Number |
SV431TDVIUA |
| Manufacturer Website Address |
http://www.startech.com |
| Packaged Quantity |
1 |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- 4 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub
- 4 x Rubber Foot Pads
- 1 x Universal Power Adapter (NA/UK/EU)
- 1 x User Manual
|
| Physical Characteristics |
| Height |
3.2" |
| Width |
8.6" |
| Depth |
5.1" |
| Form Factor |
Rack-mountable |
| Weight (Approximate) |
3.30 lb |
| Technical Information |
| Number of Computers Supported |
4 |
| Video |
| Maximum Video Resolution |
1920 x 1200 |
| Graphic Mode |
WUXGA |
| Warranty |
| Limited Warranty |
3 Year |
|
