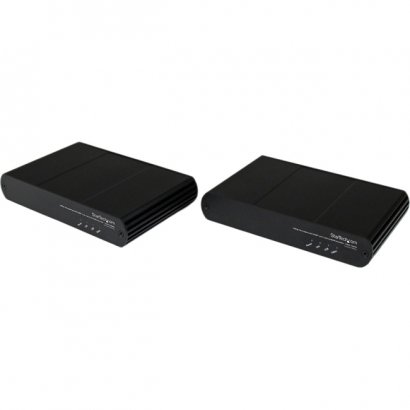

The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices. A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3D and 4K support, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display. This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| USB |
Yes
|
| HDMI |
Yes
|
| Number of HDMI Ports |
2
|
| Number of Network (RJ-45) Ports |
2
|
| Network (RJ-45) |
Yes
|
| Number of USB Ports |
4
|
| Product Type |
KVM Console/Extender
|
| Brand Name |
StarTech.com
|
| Manufacturer |
StarTech.com
|
| Product Model |
SV565UTPHDU
|
| Product Name |
KVM Console/Extender
|
| Manufacturer Part Number |
SV565UTPHDU
|
| Manufacturer Website Address |
http://www.startech.com
|
| Packaged Quantity |
1
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- Local Extender Unit
- Remote Extender Unit
- HDMI Cable
- USB Cable
- Universal Power Adapters (NA/EU/UK)
- Instruction Manual
|
| Maximum Operating Distance |
330 ft
|
| Number of Computers Supported |
1
|
| Number of Local Users Supported |
1
|
| Connectivity Technology |
Wired
|
| Maximum Video Resolution |
1920 x 1200
|
| Graphic Mode |
WUXGA
|
| Limited Warranty |
2 Year
|
Specifications
| Interfaces/Ports |
| USB |
Yes |
| HDMI |
Yes |
| Number of HDMI Ports |
2 |
| Number of Network (RJ-45) Ports |
2 |
| Network (RJ-45) |
Yes |
| Number of USB Ports |
4 |
| General Information |
| Product Type |
KVM Console/Extender |
| Brand Name |
StarTech.com |
| Manufacturer |
StarTech.com |
| Product Model |
SV565UTPHDU |
| Product Name |
KVM Console/Extender |
| Manufacturer Part Number |
SV565UTPHDU |
| Manufacturer Website Address |
http://www.startech.com |
| Packaged Quantity |
1 |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- Local Extender Unit
- Remote Extender Unit
- HDMI Cable
- USB Cable
- Universal Power Adapters (NA/EU/UK)
- Instruction Manual
|
| Technical Information |
| Maximum Operating Distance |
330 ft |
| Number of Computers Supported |
1 |
| Number of Local Users Supported |
1 |
| Connectivity Technology |
Wired |
| Video |
| Maximum Video Resolution |
1920 x 1200 |
| Graphic Mode |
WUXGA |
| Warranty |
| Limited Warranty |
2 Year |
|
