Description
Condition:
New

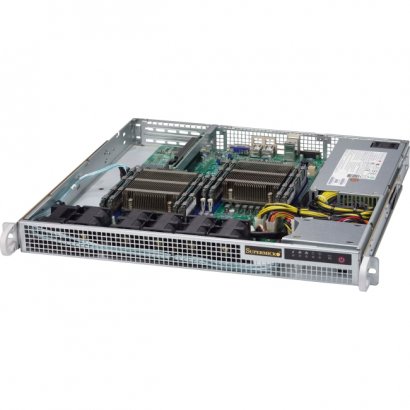

1U SuperChassis 514 Supermicro's SC514 1U cost-effective chassis, featuring a short depth less than 16.9", is design for resource optimized while providing high performance. Optimized for dual-processor or single-processor motherboard. The SC514 features an advanced thermal design for highly efficient cooling and quiet operation with up to 6x 4cm counter-rotating cooling fans, and supports a complete selection of high-efficiency power supplies to fit exactly the desired application. Tooless serviceability and quick release sliding rails are also available for deploying in HPC and data center environments. SuperChassis 514-441 (No Paint)
Specifications
General Information Product Type: Computer CaseBrand Name: SupermicroManufacturer: Supermicro Computer, IncProduct Model: SC514-441Product Name: SuperChassis 514-441 (No Paint)Package Type: RetailProduct Line: SuperChassisManufacturer Part Number: CSE-514-441Manufacturer Website Address: http://www.supermicro.comPackaged Quantity: 1Technical Information Number of Fans Supported: 6Number of Fans Installed: 4Installed Fan Size: 1.57"Motherboard Supported: EATXPhysical Characteristics Compatible Rack Unit: 1UHeight: 1.7"Width: 17.2"Depth: 16.9"Form Factor: Rack-mountablePower Description Number of Power Supplies Supported: 1Number of Power Supplies Installed: 1Power Supply Wattage: 480 WPower Supply Installed: YesBays Number of Internal 2.5" Bays: 2Number of Total Expansion Bays: 2I/O Expansions Number of Total Expansion Slots: 2Miscellaneous Package Contents: - SuperChassis 514-441 (No Paint)
- 1 x Front Ctrl Cable Round 16 pin to 16 pin, 40cm, 28AWG
- 1 x US Power Cord 18AWG 6ft, PBF (default for low watt)
- 4 x Fan 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
- 1 x Set Outer Rail, quick-release type, 25.6" to 33.05"
- 1 x Set Inner Rail, front, short, quick-release type
SC514-441
|
