Description
Condition:
New
Specifications

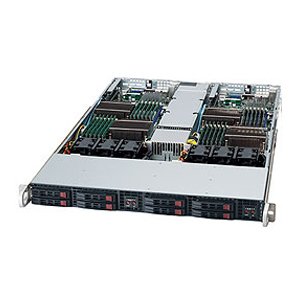

General Information Product Type: Computer CaseBrand Name: SupermicroManufacturer: Supermicro Computer, IncProduct Model: SC809T-1200BProduct Name: SuperChassis SC809T-1200B Rackmount EnclosureProduct Line: SuperChassisManufacturer Part Number: CSE-809T-1200BManufacturer Website Address: http://www.supermicro.comMiscellaneous Green Compliant: YesGreen Compliance Certificate/Authority: 80 Plus GoldPackage Contents: - SuperChassis SC809T-1200B Rackmount Enclosure
- 2 x Mylar air shroud for X8 DP, SC808, SC809
- 2 x 809 SAS Backplane
- 8 x 2.5" SAS / SATA HDD Tray with SES-II (black)
- 2 x Front control cable round 16 to 16 pin ribbon, 20"
- 2 x 4-pin power cable, ST to RA, 40cm
- 2 x SATA round S-S, 59cm
- 2 x SATA round S-RA, 43cm
- 2 x SATA round S-RA, 48cm
- 2 x SATA round S-RA, 55cm
- 6 x (40 x 56) 4-pin PWM Cooling Fans
- 2 x Front Panel Control Board
- 1 x 1U Chassis Mounting Rails and Kit
- 1 x 1200W high-efficiency power supply
- 1 x Power distributor
Technical Information Number of Fans Supported: 6Number of Fans Installed: 6Bays Number of External 2.5" Bays: 8Number of Total Expansion Bays: 8Physical Characteristics Compatible Rack Unit: 1UHeight: 1.7"Width: 17.2"Depth: 27.8"Color: BlackForm Factor: Rack-mountableWeight (Approximate): 29 lbPower Description Number of Power Supplies Supported: 1Number of Power Supplies Installed: 1Power Supply Wattage: 1.20 kWI/O Expansions Number of Total Expansion Slots: 1
SC809T-1200B
|
