Description
Condition:
New

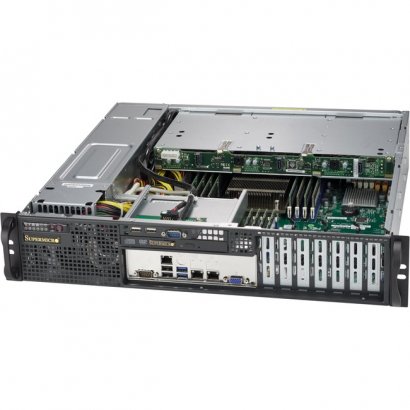

General Information Product Type: Computer CaseBrand Name: SupermicroManufacturer: Supermicro Computer, IncProduct Model: 823MTQC-R802LPBProduct Name: SuperChassis 823MTQC-R802LPBProduct Line: SuperChassisManufacturer Part Number: CSE-823MTQC-R802LPBManufacturer Website Address: http://www.supermicro.comTechnical Information Number of Fans Supported: 6Number of Fans Installed: 4Installed Fan Size: 1.57"Motherboard Supported: EATXMotherboard Supported: ATXMotherboard Supported: EE-ATXBays Number of External 3.5" Bays: 3Number of Total Expansion Bays: 3Physical Characteristics Compatible Rack Unit: 2UHeight: 3.5"Width: 17.2"Depth: 17.7"Color: BlackForm Factor: Rack-mountablePower Description Number of Power Supplies Supported: 2Number of Power Supplies Installed: 2Power Supply Wattage: 800 WPower Supply Installed: YesI/O Expansions Number of Total Expansion Slots: 7Miscellaneous Package Contents: - SuperChassis 823MTQC-R802LPB
- 1 x SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB
- 1 x 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
- 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
- 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
- 1 x Black DVD and USB dummy cover for SC823M
- 4 x 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH
- 1 x Fan Tray for Six 4056 Fans
- 2 x Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
- 3 x Black gen 5.5 hot-swap 3.5"; HDD tray
- 1 x HDD cage housing 3 trays for SC823M
- 1 x SC823M 24PIN REDUNDANT POWER DISTRIBUTOR
- 2 x 1U 800W 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc
- 1 x Rail set, quick/quick, default for 2,3U 17.2";W
- 1 x Front I/O window for SC823M LP
- 1 x SC823M rear window
Warranty Limited Warranty: 3 Year
Specifications
|
