Description
Condition:
New
Specifications

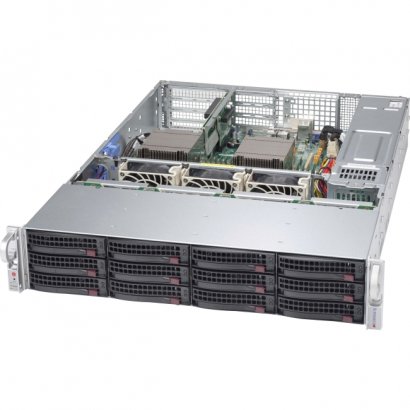

General Information Product Type: Computer CaseBrand Name: SupermicroManufacturer: Supermicro Computer, IncProduct Model: 826BAC4-R920WBProduct Name: SuperChassis 826BAC4-R920WBProduct Line: SuperChassisManufacturer Part Number: CSE-826BAC4-R920WBManufacturer Website Address: http://www.supermicro.comPackaged Quantity: 1Technical Information Number of Fans Supported: 8Number of Fans Installed: 3Installed Fan Size: 3.15"Motherboard Supported: ATXMotherboard Supported: EATXBays Number of External 3.5" Bays: 12Number of Total Expansion Bays: 12Physical Characteristics Compatible Rack Unit: 2UHeight: 3.5"Width: 17.2"Depth: 25.5"Color: BlackForm Factor: Rack-mountablePower Description Number of Power Supplies Installed: 1Power Supply Wattage: 920 WPower Supply Installed: YesI/O Expansions Number of Total Expansion Slots: 7Miscellaneous Package Contents: - SuperChassis 826BAC4-R920WB
- 1 x 2U Backplane for 3.5
- 2 x 920W 1U Redundant PWS W/ Quiet Mode
- 1 x PDB with shorter 24pin and 8pin cables for SC826B
- 1 x SC825/826/216/213 Intel DP X9,X8 PC air shroud 1368x13/12x13
- 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
- 1 x 4 pin to 4 pin power extension .HDD to RA,40cm. 20AWG
- 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
- 1 x 16 pin control panel converter cable for SC826,846, 22cm, PBF
- 3 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
- 1 x Front panel adaptor board (TB826) forSC826,213,216,219
- 1 x Front control board Dual color LED(FP826-D)forSC826,213,216,219
- 12 x Black gen 5.5 hot-swap 3.5" HDD tray
- 1 x 826B/216B rear dummy cover for 2 X 2.5" HDD cage
- 1 x Rail screw bag
- 1 x Rail set, quick/quick, default for 2,3U 17.2"W
- 1 x SC826B, 216B WIO rear window
826BAC4-R920WB
|
