Description
Condition:
New
Specifications
General Information Product Type: Computer CaseBrand Name: SupermicroManufacturer: Supermicro Computer, IncProduct Model: SC836TQ-R710BProduct Name: SC836TQ-R710B ChassisProduct Line: SuperChassisManufacturer Part Number: CSE-836TQ-R710BManufacturer Website Address: http://www.supermicro.comTechnical Information Number of Fans Installed: 5Motherboard Supported: EATXBays Number of External 3.5" Bays: 17Number of External 5.25" Bays: 1Number of Total Expansion Bays: 18Physical Characteristics Compatible Rack Unit: 3UHeight: 5.2"Width: 17.2"Depth: 25.5"Color: BlackForm Factor: Rack-mountableWeight (Approximate): 72 lbPower Description Number of Power Supplies Supported: 2Number of Power Supplies Installed: 2Power Supply Wattage: 710 WI/O Expansions Number of Total Expansion Slots: 7Interfaces/Ports Total Number of USB Ports: 2Miscellaneous Package Contents: - SuperChassis SC836TQ-R710B Rackmount Enclosure
- 1 x Round Ribbon Cable; 20" 16-pin to 16-pin
- 1 x SATA Cable; Set of 4-70/59/48/38cm Round S-RA, PBF
- 2 x (80x32mm) Rear Exhaust Fan with HUS (Housing), PBF 3U
- 3 x (80x38mm ) Middle Hot Swap Fan with HUS (Housing), PBF 2U
- 1 x Front Panel Control Board for SC836
- 1 x SB Assembly Tray for SC825 & SC836
- 16 x 4th Generation Hot-swappable 3.5" drive Tray
- 1 x 836 SAS (TQ) Backplane with AMI 9072
- 1 x 3U SC836, 846 Mounting Rails
- 1 x Panasonic Slim 8x DVD, 24x CD, DVD-ROM Drive
- 1 x Slim CDR Accessory (Installed with CDR)
- 2 x 710W DC Input Power Supply Module for 1U
- 1 x Distributor for 2U or 3U, Extend 700W, 800W power
- 1 x Air Shroud Assembly for SC836 Intel CPU

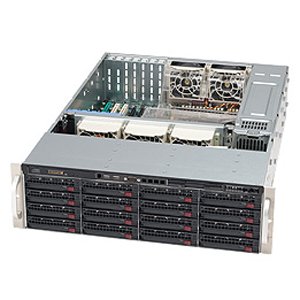

SC836TQ-R710B
|
