Description
Condition:
New
Specifications

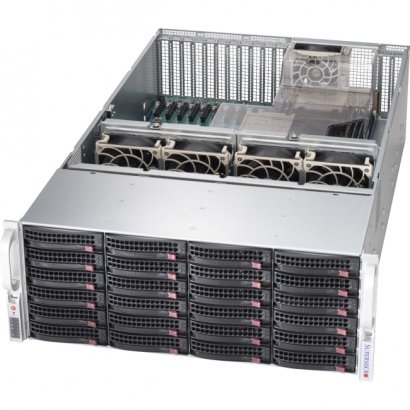

General Information Product Type: Computer CaseBrand Name: SupermicroManufacturer: Supermicro Computer, IncProduct Model: SC846XA-R1K23BProduct Name: SuperChassis 846XA-R1K23B (Black)Product Line: SuperChassisManufacturer Part Number: CSE-846XA-R1K23BManufacturer Website Address: http://www.supermicro.comPackaged Quantity: 1Technical Information Number of Fans Installed: 5Installed Fan Size: 3.15"Motherboard Supported: ATXMotherboard Supported: EATXBays Number of External 2.5" Bays: 2Number of External 3.5" Bays: 24Number of Total Expansion Bays: 26Physical Characteristics Compatible Rack Unit: 4UHeight: 7"Width: 17.2"Depth: 26.5"Color: BlackForm Factor: Rack-mountablePower Description Number of Power Supplies Installed: 1Power Supply Wattage: 1.20 kWPower Supply Installed: YesI/O Expansions Number of Total Expansion Slots: 13Miscellaneous Package Contents: - SuperChassis 846XA-R1K23B (Black)
- 1 x 4U 6Gbps Backplane Supports 24x3.5" SAS/SATA HDD/SSD w/ iPass Connectors
- 2 x AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
- 2 x 1U 1280W, redundant single output power supply
- 2 x SC745 Power Supply Dummy Cover (76mm wide, 700W/800W/900W)
- 1 x Power Distributor Board for SC418 to support Battery and GPU option
- 1 x Air shroud for SC846X (Optimized for X9DRX)
- 1 x Air shroud for SC846X (Optimized for X9DRX)
- 1 x 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM)
- 4 x 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM). 24AWG
- 2 x US power cord 14AWG 6ft, PBF.2.08mm^2
- 4 x 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM). 24AWG
- 1 x 16 pin control panel converter cable for SC826,846, 23.5cm, PBF
- 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
- 1 x 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM)
- 1 x 16 pin control panel converter cable for SC826,846, 23.5cm, PBF
- 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
- 2 x US power cord 14AWG 6ft, PBF.2.08mm^2
- 4 x 92x92x38 mm, 7.5K RPM, PWM Fan for SC748 rev K
- 1 x 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
- 4 x 92x92x38 mm, 7.5K RPM, PWM Fan for SC748 rev K
- 1 x 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
- 1 x Front control board adapter (TB826) for SC216,826,936,846
- 1 x Front control board adapter (TB826) for SC216,826,936,846
- 1 x 826B/216B rear dummy cover for 2 X 2.5" HDD cage
- 24 x Black gen 5.5 hot-swap 3.5" HDD tray
- 1 x 826B/216B rear dummy cover for 2 X 2.5" HDD cage
- 24 x Black gen 5.5 hot-swap 3.5" HDD tray
- 1 x Threaded rail adapter default for round hole rack
- 1 x set Rail set, quick/quick, default for 4U 17.2
- 1 x Threaded rail adapter default for round hole rack
- 1 x set Rail set, quick/quick, default for 4U 17.2
- 1 x 846X rear window
- 1 x 846X rear window
SC846XA-R1K23B
|
