Description
Condition:
New

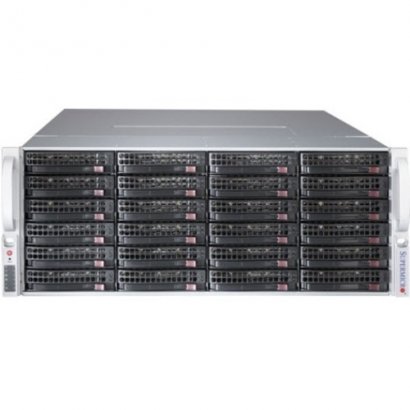

4U SuperChassis 847 Optimized for enterprise-level high-capacity storage applications, Supermicro's SC847 Chassis features 36x (24 front + 12 rear) 3.5" Hot-swap HDD bays as server chassis or 45x (24 front + 21 rear) 3.5" Hot-swap HDD bays as JBOD chassis in a 4U space. The SC847 design offers extra high-density of HDD per space ratio in a 4U form factor, high power efficiency, optimized HDD signal trace routing and improved HDD tray design to dampen HDD vibrations and maximize performance. Equipped with 1400W (Gold Level) high-efficiency redundant power supplies and 7 hot-plug redundant cooling fans. SC847 is a reliable and hassle-free maintenance storage system. SuperChassis 847BE2C-R1K28LPB (Black)
Specifications
General Information Product Type: Computer CaseBrand Name: SupermicroManufacturer: Supermicro Computer, IncProduct Model: SC847BE2C-R1K28LPBProduct Name: SuperChassis 847BE2C-R1K28LPB (Black)Product Line: SuperChassisManufacturer Part Number: CSE-847BE2C-R1K28LPBManufacturer Website Address: http://www.supermicro.comPackaged Quantity: 1Technical Information Number of Fans Supported: 7Motherboard Supported: EATXMotherboard Supported: WIOBays Number of External 3.5" Bays: 36Number of Total Expansion Bays: 36Physical Characteristics Compatible Rack Unit: 4UHeight: 7"Width: 17.2"Depth: 27.5"Color: BlackForm Factor: Rack-mountablePower Description Power Supply Wattage: 1.28 kWPower Supply Installed: YesI/O Expansions Number of Total Expansion Slots: 7Miscellaneous Package Contents: - SuperChassis 847BE2C-R1K28LPB (Black)
- 1 x SAS 12G dual-expander backplane, with 2x LSISAS3x28 expanders, support 12x 3.5
- 1 x 24x 3.5
- 2 x 1U 1280W, redundant single output power supply
- 1 x 24pin standard output with 5V high current 100Amp power distributor board for SC847
- 1 x SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB
- 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
- 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
- 1 x 16 pin control panel converter cable for SC826,846, 23.5cm, PBF
- 7 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
- 1 x Front control board adapter (TB826) for SC216,826,936,846
- 1 x SC847B LP MB Tray assembly,HF,RoHS/REACH
- 1 x SC847B WIO MB Tray assembly,HF,RoHS/REACH
- 36 x Black gen 5.5 hot-swap 3.5" HDD tray
- 1 x set Rail set, quick/quick, default for 4U 17.2
SC847BE2C-R1K28LPB
|
