General Information
-
Product Type:
Server Motherboard -
Brand Name:
Supermicro -
Manufacturer:
Supermicro Computer, Inc -
Product Model:
A2SDi-TP8F -
Product Name:

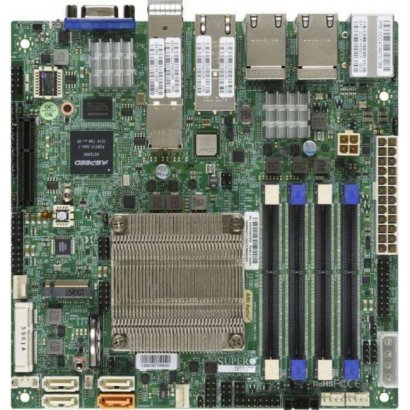

A2SDi-TP8F Server Motherboard -
Package Type:
Retail -
Manufacturer Part Number:
MBD-A2SDI-TP8F-O -
Manufacturer Website Address:
http://www.supermicro.com -
Packaged Quantity:
1 -
Miscellaneous
-
Environmentally Friendly:
Yes -
Environmental Certification:
RoHS -
Package Contents:
- A2SDi-TP8F Server Motherboard
- 1 x Motherboard Quick Reference Guide
- 4 x SATA Cables
- 2 x MINI SAS HD-4 SATA, INT, 50CM, 50CM SB, 30AWG
- 1 x I/O Shield
-
Processor & Chipset
-
Chipset Manufacturer:
Intel -
Processor Socket:
Socket BGA-1310 -
Memory
-
Number of Memory Slots:
4 -
Memory Form Factor:
DIMM -
Memory Form Factor:
UDIMM -
Memory Speed Supported:
2400 MHz -
Memory Speed Supported:
2133 MHz -
Memory Speed Supported:
1866 MHz -
Memory Speed Supported:
1600 MHz -
Memory Technology:
DDR4 SDRAM -
Maximum Memory:
64 GB -
Video
-
Graphics Controller Manufacturer:
ASPEED -
Graphics Controller Model:
AST2400 -
Onboard Video:
On-board Video Chipset -
Network & Communication
-
Gigabit Ethernet:
Yes -
10Gigabit Ethernet:
Yes -
Onboard Interfaces
-
Number of SATA Interfaces:
4 -
Total Number of Onboard USB Ports:
4 -
Number of M.2 Interfaces:
1 -
I/O Expansions
-
Number of Total Expansion Slots:
2 -
Number of PCI Express x4 Slots:
1 -
Total Number of PCI Express Slots:
1 -
Interfaces/Ports
-
VGA:
Yes -
Total Number of USB Ports:
2 -
Number of USB 3.0 Ports:
2 -
Integrated Processor
-
Integrated Processor Manufacturer:
Intel -
Integrated Processor Type:
Atom -
Integrated Processor Model:
C3858 -
Integrated Processor Speed:
2 GHz -
Integrated Processor Core:
Dodeca-core (12 Core) -
Physical Characteristics
-
Width:
6.7" -
Depth:
6.7" -
Form Factor:
Mini ITX -
I/O Controller
-
Controller Type:
Serial ATA/600 -
Warranty
-
Limited Warranty:
1 Year
