General Information
Product Type:
Desktop MotherboardBrand Name:
SupermicroManufacturer:
Supermicro Computer, IncProduct Model:

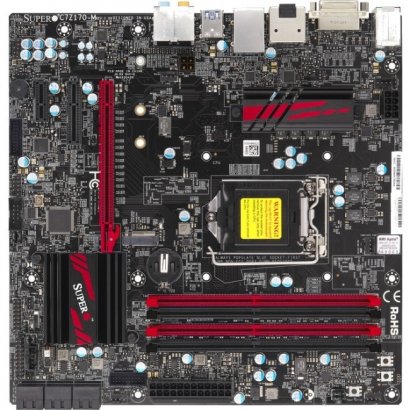

C7Z170-MProduct Name:
C7Z170-M Desktop MotherboardPackage Type:
RetailManufacturer Part Number:
MBD-C7Z170-M-OManufacturer Website Address:
http://www.supermicro.comPackaged Quantity:
1Processor & Chipset
Chipset Manufacturer:
IntelChipset Model:
Z170Processor Socket:
Socket H4 LGA-1151Processor Supported:
Core i7Processor Supported:
Core i5Processor Supported:
Core i3Total Processor Supported:
1Memory
Number of Memory Slots:
4Memory Form Factor:
DIMMMemory Form Factor:
UDIMMMemory Speed Supported:
3.20 GHz (O.C.)Memory Technology:
DDR4 SDRAMMaximum Memory:
64 GBVideo
Graphics Controller Manufacturer:
IntelOnboard Video:
CPU Dependent VideoAudio
Audio Channels:
7.1Network & Communication
Gigabit Ethernet:
YesOnboard Interfaces
Number of SATA Interfaces:
6Total Number of Onboard USB Ports:
6Number of Onboard USB 3.0 Ports:
2Number of M.2 Interfaces:
1Number of Onboard USB 3.1 Ports:
2I/O Expansions
Number of PCI Express x1 Slots:
1Number of Total Expansion Slots:
3Number of PCI Express x4 Slots:
1Number of PCI Express x16 Slots:
1Total Number of PCI Express Slots:
3I/O Controller
RAID Supported:
YesRAID Levels:
0RAID Levels:
1RAID Levels:
5RAID Levels:
10Controller Type:
Serial ATA/600Interfaces/Ports
HDMI:
YesDVI:
YesDisplayPort:
YesTotal Number of USB Ports:
6Number of USB 3.0 Ports:
4Physical Characteristics
Width:
9.6"Depth:
9.6"Form Factor:
Micro ATXMiscellaneous
Compatibility:
Supermicro:
Mid-Tower
Tower / 4U Rackmount
