General Information
Product Type:
Desktop MotherboardBrand Name:
SupermicroManufacturer:
Supermicro Computer, IncProduct Model:

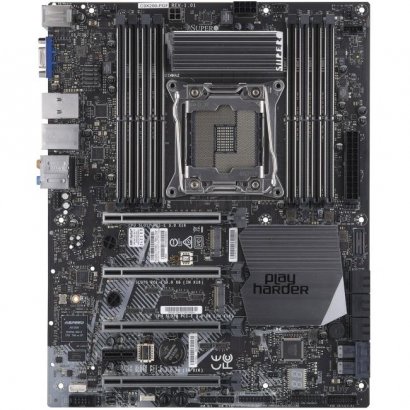

C9X299-PGFProduct Name:
C9X299-PGF Desktop MotherboardPackage Type:
BulkManufacturer Part Number:
MBD-C9X299-PGF-BManufacturer Website Address:
http://www.supermicro.comPackaged Quantity:
1Miscellaneous
Environmentally Friendly:
YesEnvironmental Certification:
RoHSEnvironmental Certification:
WEEECompatibility:
SuperChassis:
- SCGS5A-753K
- SCGS5A-753R
- SC732D3-903B
- SC732D3-1200B
- SC743AC-668B
- SC743AC-1200B-SQ
Package Contents:
- C9X299-PGF Desktop Motherboard
- 2 x SATA Cable
- 1 x IO Shield
Processor & Chipset
Chipset Manufacturer:
IntelProcessor Socket:
Socket R4 LGA-2066Processor Supported:
Core X-SeriesTotal Processor Supported:
1Memory
Number of Memory Slots:
8Memory Form Factor:
UDIMMMemory Form Factor:
DIMMMemory Speed Supported:
1.87 GHzMemory Speed Supported:
2.67 GHzMemory Speed Supported:
2.40 GHzMemory Speed Supported:
2.13 GHzMemory Speed Supported:
1.60 GHzIntel Optane Memory Ready:
YesMemory Technology:
DDR4 SDRAMMaximum Memory:
128 GBVideo
Graphics Controller Manufacturer:
ASPEEDGraphics Controller Model:
AST2500Onboard Video:
On-board Video ChipsetNetwork & Communication
Gigabit Ethernet:
YesOnboard Interfaces
Number of SATA Interfaces:
6Total Number of Onboard USB Ports:
6Number of Onboard USB 3.0 Ports:
2Number of M.2 Interfaces:
2I/O Expansions
Number of PCI Express x1 Slots:
1Number of Total Expansion Slots:
5Number of PCI Express x16 Slots:
4Total Number of PCI Express Slots:
5I/O Controller
RAID Supported:
YesRAID Levels:
10RAID Levels:
5RAID Levels:
1RAID Levels:
0Controller Type:
Serial ATA/600Interfaces/Ports
VGA:
YesTotal Number of USB Ports:
6Number of USB 3.0 Ports:
2Number of USB 3.1 Ports:
4Physical Characteristics
Width:
12"Depth:
9.6"Form Factor:
ATXWarranty
Limited Warranty:
1 Year
