General Information
-
Product Type:
Server Motherboard -
Brand Name:
Supermicro -
Manufacturer:
Supermicro Computer, Inc -
Product Model:
X11SBA-LN4F -
Product Name:

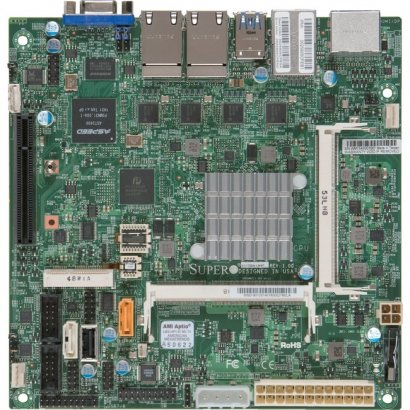

X11SBA-LN4F Server Motherboard -
Package Type:
Retail -
Manufacturer Part Number:
MBD-X11SBA-LN4F-O -
Manufacturer Website Address:
http://www.supermicro.com -
Packaged Quantity:
1 -
Miscellaneous
-
Environmentally Friendly:
Yes -
Environmental Certification:
RoHS -
Country of Origin:
Taiwan -
Compatibility:
Chassis:
-
Package Contents:
- X11SBA-LN4F Server Motherboard
- 1 x Quick Reference Guide
- 2 x I/O Cables
- 1 x I/O Shield
-
Processor & Chipset
-
Chipset Manufacturer:
Intel -
Processor Socket:
Socket BGA-1170 -
Total Processor Supported:
1 -
Memory
-
Number of Memory Slots:
2 -
Memory Form Factor:
SoDIMM -
Memory Speed Supported:
1.60 GHz -
Memory Speed Supported:
1.33 GHz -
Memory Speed Supported:
1.07 GHz -
Memory Standard:
DDR3-1600/PC3-12800 -
Memory Standard:
DDR3-1333/PC3-10600 -
Memory Standard:
DDR3-1066/PC3-8500 -
Memory Technology:
DDR3 SDRAM -
Maximum Memory:
8 GB -
Video
-
Graphics Controller Manufacturer:
ASPEED -
Graphics Controller Model:
AST2400 -
Onboard Video:
On-board Video Chipset -
Network & Communication
-
Gigabit Ethernet:
Yes -
Onboard Interfaces
-
Number of SATA Interfaces:
2 -
Total Number of Onboard USB Ports:
5 -
Number of Onboard USB 2.0 Ports:
5 -
I/O Expansions
-
Number of Total Expansion Slots:
1 -
Number of PCI Express x8 Slots:
1 -
Total Number of PCI Express Slots:
1 -
Interfaces/Ports
-
HDMI:
Yes -
VGA:
Yes -
Number of Network (RJ-45) Ports:
5 -
DisplayPort:
Yes -
Total Number of USB Ports:
4 -
Number of USB 2.0 Ports:
2 -
Number of USB 3.0 Ports:
2 -
Integrated Processor
-
Integrated Processor Manufacturer:
Intel -
Integrated Processor Type:
Pentium -
Integrated Processor Model:
N3700 -
Integrated Processor Core:
Quad-core (4 Core) -
Physical Characteristics
-
Width:
6.7" -
Depth:
6.7" -
Form Factor:
Mini ITX -
I/O Controller
-
Controller Type:
Serial ATA/600 -
Warranty
-
Limited Warranty:
1 Year
