General Information
Product Type:
Server MotherboardBrand Name:
SupermicroManufacturer:
Supermicro Computer, IncProduct Model:

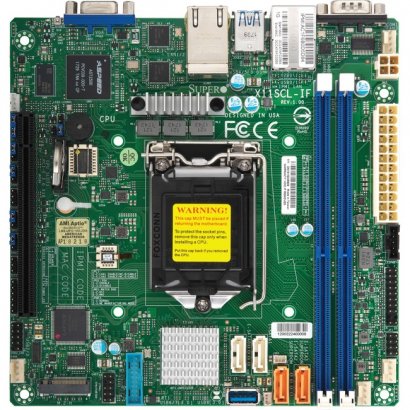

X11SCL-IFProduct Name:
X11SCL-IF Server MotherboardPackage Type:
RetailManufacturer Part Number:
MBD-X11SCL-IF-OManufacturer Website Address:
http://www.supermicro.comPackaged Quantity:
1Miscellaneous
Environmentally Friendly:
YesEnvironmental Certification:
RoHSCompatibility:
Supermicro Chassis:
- SC504-203B
- SC505-203B
- 1U Heatsink:SNK-P0049A4
Supermicro Servers:
- SYS-5019C-L
- SYS-5019C-FL
- SYS-5029C-T
Package Contents:
- X11SCL-IF Server Motherboard
- 4 x I/O Cables
- 1 x I/O Shield
- 1 x Motherboard Quick Reference Guide
Processor & Chipset
Chipset Manufacturer:
IntelProcessor Socket:
Socket H4 LGA-1151Processor Supported:
CeleronProcessor Supported:
PentiumProcessor Supported:
XeonProcessor Supported:
Core i3Total Processor Supported:
1Memory
Number of Memory Slots:
2Memory Form Factor:
DIMMMemory Form Factor:
UDIMMMemory Speed Supported:
2.67 GHzMemory Speed Supported:
2.40 GHzMemory Speed Supported:
2.13 GHzMemory Speed Supported:
2.67 GHzMemory Technology:
DDR4 SDRAMMaximum Memory:
64 GBVideo
Graphics Controller Manufacturer:
ASPEEDGraphics Controller Model:
AST2500Onboard Video:
On-board Video ChipsetNetwork & Communication
Gigabit Ethernet:
YesOnboard Interfaces
Number of SATA Interfaces:
4Total Number of Onboard USB Ports:
5Number of Onboard USB 2.0 Ports:
2Number of M.2 Interfaces:
1Number of Onboard USB 3.1 Ports:
3I/O Controller
RAID Supported:
YesRAID Levels:
0RAID Levels:
1RAID Levels:
5RAID Levels:
10Controller Type:
Serial ATA/600I/O Expansions
Number of Total Expansion Slots:
1Number of PCI Express x16 Slots:
1Total Number of PCI Express Slots:
1Interfaces/Ports
VGA:
YesNumber of Network (RJ-45) Ports:
2Total Number of USB Ports:
4Number of USB 2.0 Ports:
2Number of USB 3.1 Ports:
2Physical Characteristics
Width:
6.7"Depth:
6.7"Form Factor:
Mini ITXWarranty
Limited Warranty:
1 Year
