General Information
-
Product Type:
Workstation Motherboard -
Brand Name:
Supermicro -
Manufacturer:
Supermicro Computer, Inc -
Product Model:
X12SAE -
Product Name:

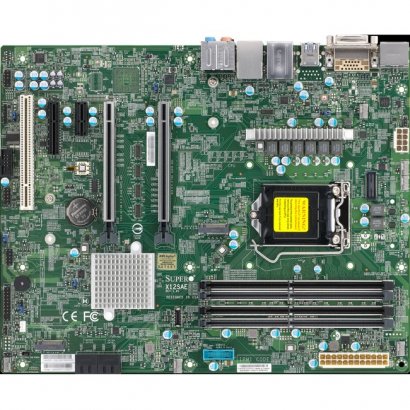

X12SAE Workstation Motherboard -
Package Type:
Retail -
Manufacturer Part Number:
MBD-X12SAE-O -
Manufacturer Website Address:
http://www.supermicro.com -
Packaged Quantity:
1 -
Miscellaneous
-
Environmentally Friendly:
Yes -
Environmental Certification:
RoHS -
Package Contents:
- X12SAE Workstation Motherboard
- 4 x SATA Cables
- 1 x I/O Shield
- 1 x Quick Reference Guide
-
Processor & Chipset
-
Chipset Manufacturer:
Intel -
Processor Socket:
Socket LGA-1200 -
Processor Supported:
Xeon -
Processor Supported:
Core i3 -
Processor Supported:
Core i5 -
Processor Supported:
Core i7 -
Processor Supported:
Core i9 -
Processor Supported:
Celeron -
Processor Supported:
Pentium -
Total Processor Supported:
1 -
Memory
-
Number of Memory Slots:
4 -
Memory Form Factor:
DIMM -
Memory Form Factor:
UDIMM -
Memory Speed Supported:
2933 MHz -
Memory Technology:
DDR4 SDRAM -
Maximum Memory:
128 GB -
Audio
-
Audio Channels:
7.1 -
Network & Communication
-
Gigabit Ethernet:
Yes -
2.5Gigabit Ethernet:
Yes -
Onboard Interfaces
-
Number of SATA Interfaces:
4 -
Total Number of Onboard USB Ports:
6 -
Number of Onboard USB 2.0 Ports:
2 -
Number of M.2 Interfaces:
2 -
Number of Onboard USB 3.2 Ports:
4 -
I/O Expansions
-
Number of PCI Express x1 Slots:
1 -
Number of Total Expansion Slots:
5 -
Number of PCI Express x4 Slots:
1 -
Number of PCI Express x16 Slots:
2 -
Total Number of PCI Express Slots:
4 -
Video
-
Onboard Video:
CPU Dependent Video -
I/O Controller
-
RAID Supported:
Yes -
RAID Levels:
0 -
RAID Levels:
1 -
RAID Levels:
5 -
RAID Levels:
10 -
Controller Type:
Serial ATA/600 -
Interfaces/Ports
-
HDMI:
Yes -
DVI:
Yes -
Number of Network (RJ-45) Ports:
2 -
DisplayPort:
Yes -
Total Number of USB Ports:
4 -
Number of USB 3.2 Ports:
4 -
Physical Characteristics
-
Width:
12" -
Depth:
9.6" -
Form Factor:
ATX
