Description
Condition:
New

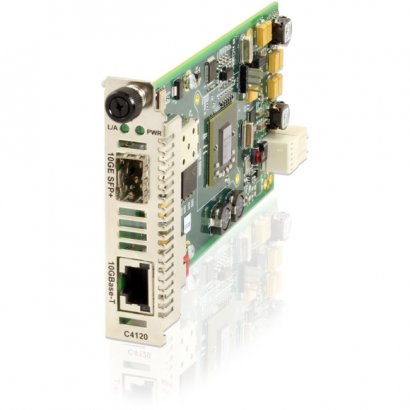

The x4120-1048 is a 10 Gigabit Ethernet copper to fiber media converter. It offers conversion technology by providing one 10GBase-T RJ-45 port and one pluggable 10GBase-X fiber SFP+ port. The open SFP+ port supports a wide variety of Transition Networks 10GE SFP+ fiber modules, as well as third party MSA compatible SFP+ modules.The x4120 provides several 10G Ethernet enterprise and data center connectivity solutions. Since most 10G Ethernet switches support a combination of copper RJ-45 and open SFP+ ports, the x4120 allows users to convert either of these ports to the media type of their reference to match their network requirements, including direct attached copper SFP+ cables.
| Product Type |
Transceiver/Media Converter
|
| Brand Name |
Transition Networks
|
| Manufacturer |
Transition Networks, Inc
|
| Product Model |
C4120-1048
|
| Product Name |
10GBase-T Copper to Fiber Media Converter
|
| Manufacturer Part Number |
C4120-1048
|
| Manufacturer Website Address |
http://www.transition.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
WEEE
|
| Ethernet Technology |
10 Gigabit Ethernet
|
| Network Technology |
10GBase-T
10GBase-X
|
| Number of Total Expansion Slots |
1
|
| Expansion Slot Type |
SFP+
|
| Number of Network (RJ-45) Ports |
1
|
| Network (RJ-45) |
Yes
|
| Total Number of Ports |
1
|
| Media Type Supported |
Twisted Pair
|
| Height |
3.4"
|
| Width |
6.5"
|
| Form Factor |
Internal
|
| Thickness |
860 mil
|
| Limited Warranty |
Lifetime
|
Specifications
| General Information |
| Product Type |
Transceiver/Media Converter |
| Brand Name |
Transition Networks |
| Manufacturer |
Transition Networks, Inc |
| Product Model |
C4120-1048 |
| Product Name |
10GBase-T Copper to Fiber Media Converter |
| Manufacturer Part Number |
C4120-1048 |
| Manufacturer Website Address |
http://www.transition.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Green Compliance Certificate/Authority |
WEEE |
| Network & Communication |
| Ethernet Technology |
10 Gigabit Ethernet |
| Network Technology |
10GBase-T |
| Network Technology |
10GBase-X |
| I/O Expansions |
| Number of Total Expansion Slots |
1 |
| Expansion Slot Type |
SFP+ |
| Interfaces/Ports |
| Number of Network (RJ-45) Ports |
1 |
| Network (RJ-45) |
Yes |
| Total Number of Ports |
1 |
| Media & Performance |
| Media Type Supported |
Twisted Pair |
| Physical Characteristics |
| Height |
3.4" |
| Width |
6.5" |
| Form Factor |
Internal |
| Thickness |
860 mil |
| Warranty |
| Limited Warranty |
Lifetime |
|
