Description
Condition:
New

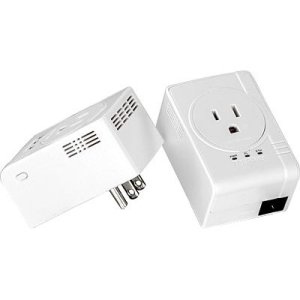

ThePowerline 500 AV Nano Adapter Kit with Built-In Outlet, model TPL-407E2K, uses existing electrical lines to create a secure high speed network. Connect the first adapter to your network and plug the second adapter into an outlet on your electrical system for instant high speed network access. The compact form factor saves space and offers an additional electrical outlet, built into the front of the housing to power computers and other devices. A noise filter maintains optimum connection speeds when devices such as computers, televisions, and gaming consoles create electrical background noise.
| Product Type |
Powerline Network Adapter
|
| Brand Name |
TRENDnet
|
| Manufacturer |
TRENDnet
|
| Product Model |
TPL-407E2K
|
| Product Name |
Powerline 500 AV Nano Adapter Kit with Built-In Outlet
|
| Manufacturer Part Number |
TPL-407E2K
|
| Manufacturer Website Address |
http://www.trendnet.com
|
| Packaged Quantity |
2
|
| Wireless LAN |
No
|
| Powerline Transmission Standard |
HomePlug AV
|
| Ethernet Technology |
Fast Ethernet
|
| Minimum Operating Frequency |
2 MHz
|
| Maximum Operating Frequency |
68 MHz
|
| USB |
No
|
| Number of Network (RJ-45) Ports |
1
|
| Network (RJ-45) |
Yes
|
| Audio Line In |
No
|
| Audio Line Out |
No
|
| Phone Line (RJ-11) |
No
|
| PoE (RJ-45) Port |
No
|
| BNC |
No
|
| Powerline Data Transfer Rate |
500 Mbps
|
| Maximum Distance Supported |
984.25 ft
|
| Height |
3"
|
| Width |
2.2"
|
| Depth |
3.1"
|
| Weight (Approximate) |
4.87 oz
|
| Input Voltage |
110 V AC
220 V AC
|
| Package Contents |
- Powerline 500 AV Nano Adapter Kit with Built-In Outlet
- Quick Installation Guide
- CD-ROM (Utility & User's Guide)
- 2 x Network Cables (1.5 m / 5 ft.)
|
| Limited Warranty |
3 Year
|
Specifications
| General Information |
| Product Type |
Powerline Network Adapter |
| Brand Name |
TRENDnet |
| Manufacturer |
TRENDnet |
| Product Model |
TPL-407E2K |
| Product Name |
Powerline 500 AV Nano Adapter Kit with Built-In Outlet |
| Manufacturer Part Number |
TPL-407E2K |
| Manufacturer Website Address |
http://www.trendnet.com |
| Packaged Quantity |
2 |
| Wireless Specifications |
| Wireless LAN |
No |
| Network & Communication |
| Powerline Transmission Standard |
HomePlug AV |
| Ethernet Technology |
Fast Ethernet |
| Technical Information |
| Minimum Operating Frequency |
2 MHz |
| Maximum Operating Frequency |
68 MHz |
| Interfaces/Ports |
| USB |
No |
| Number of Network (RJ-45) Ports |
1 |
| Network (RJ-45) |
Yes |
| Audio Line In |
No |
| Audio Line Out |
No |
| Phone Line (RJ-11) |
No |
| PoE (RJ-45) Port |
No |
| BNC |
No |
| Media & Performance |
| Powerline Data Transfer Rate |
500 Mbps |
| Maximum Distance Supported |
984.25 ft |
| Physical Characteristics |
| Height |
3" |
| Width |
2.2" |
| Depth |
3.1" |
| Weight (Approximate) |
4.87 oz |
| Power Description |
| Input Voltage |
110 V AC |
| Input Voltage |
220 V AC |
| Miscellaneous |
| Package Contents |
- Powerline 500 AV Nano Adapter Kit with Built-In Outlet
- Quick Installation Guide
- CD-ROM (Utility & User's Guide)
- 2 x Network Cables (1.5 m / 5 ft.)
|
| Warranty |
| Limited Warranty |
3 Year |
|
