Description
Condition:
New

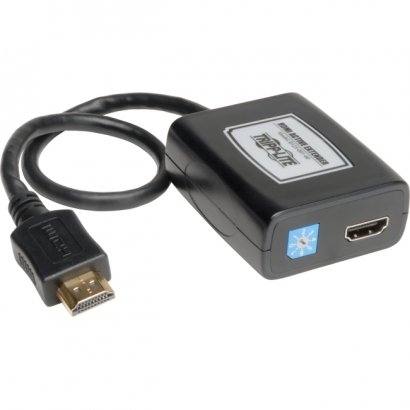

Tripp Lite's B123-001-60 HDMI Signal Extender increases the distance a 1080p @ 60Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz, at a maximum distance of 125 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 60Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the B123-001-60, and the shorter cable (16 ft. or less) between the adapter and the monitor/TV. Software or drivers are not required. Built-in Equalization control to adjust the video image. HDCP compliant. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
| Product Type |
A/V Cable
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Model |
B123-001-60
|
| Product Name |
1-ft. HDMI Active Signal Extender Cable (HDMI M/F)
|
| Manufacturer Part Number |
B123-001-60
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
WEEE
|
| Package Contents |
- 1-ft. HDMI Active Signal Extender Cable (HDMI M/F)
- External Power Supply ( Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A )
- Screwdriver for Equalization Adjustment
|
| Connector on First End |
1 x HDMI Male Digital Audio/Video
|
| Connector on Second End |
1 x HDMI Female Digital Audio/Video
|
| Cable Type |
HDMI
|
| Features |
Repeater
|
| Device Supported |
Audio/Video Device
Monitor
TV
|
| Cable Length |
1 ft
|
| Limited Warranty |
1 Year
|
Specifications
| General Information |
| Product Type |
A/V Cable |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Model |
B123-001-60 |
| Product Name |
1-ft. HDMI Active Signal Extender Cable (HDMI M/F) |
| Manufacturer Part Number |
B123-001-60 |
| Manufacturer Website Address |
http://www.tripplite.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Green Compliance Certificate/Authority |
WEEE |
| Package Contents |
- 1-ft. HDMI Active Signal Extender Cable (HDMI M/F)
- External Power Supply ( Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A )
- Screwdriver for Equalization Adjustment
|
| Technical Information |
| Connector on First End |
1 x HDMI Male Digital Audio/Video |
| Connector on Second End |
1 x HDMI Female Digital Audio/Video |
| Cable Type |
HDMI |
| Features |
Repeater |
| Device Supported |
Audio/Video Device |
| Device Supported |
Monitor |
| Device Supported |
TV |
| Cable Length |
1 ft |
| Warranty |
| Limited Warranty |
1 Year |
|
