Description
Condition:
New
The B126-1A1SR transmits HDMI, IR Remote, and Serial RS232 up to 328 ft. (100 m.) using a single Cat5e/6/6a cable. It supports Ultra High Definition (UHD) 4Kx2K video resolutions up to 3840 x 2160 @ 24Hz,. HDCP and 3D compliant, and supports 7.1 channel surround sound, DTS-HD, and Dolby TrueHD audio. Meets HDBaseT 1.0 specifications for transmitting audio/video and control signals. RS232 connection allows for use with scanners and touch-screen monitors, supporting Baud rates up to 115kbps full duplex. IR functionality allows you to use your HDMI source's remote control in the same location as your extended monitor/TV. (IR frequency @ 39Khz) Kit includes mounting hardware to be wall mounted, rack mounted, or pole mounted. When extending a 3840 x 2160 @ 24Hz Ultra High Definition (UHD) 4Kx2K video signal, use the following cables (sold separately): Cat6A (available from Tripp Lite as a custom order) for up to 328 ft. (100 m.) Cat6 cable (24AWG, Solid Wire cable required, such as Tripp Lite's N202-Series) for up to 230 ft. (70 m.) Cat5e cable (26AWG, Solid Wire cable required, such as Tripp Lite's N001- and N002-Series) for up to 150 ft. (45.7 m.) When extending computer video resolutions of 1920 x 1200 @ 60Hz, or HD video resolutions of 1080p @ 60Hz, use Cat5e/6 cable (24AWG, Solid Wire cable required, such as Tripp Lite's N202-Series) to extend the signal up to 328 ft. (100 m.).
| Product Type |
Video Extender
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Model |
B126-1A1SR
|
| Product Name |
HDMI + IR + Serial RS232 over Cat5 / 6 Active Extender Kit
|
| Manufacturer Part Number |
B126-1A1SR
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Graphics Modes |
4K
|
| Maximum Video Resolution |
3840 x 2160
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |

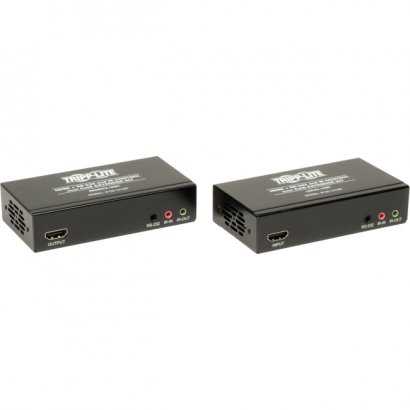

- Local Transmitter and Remote Receiver Units
- 2 x Sets of IR-IN Cables
- 2 x Sets of IR-OUT Cables
- 3.5 mm Male-to-DB9-Female Adapter Cable
- 3.5 mm Male-to-DB9-Male Adapter Cable
- 2 x Sets of External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 2A)
- 2 x Sets of Mounting Hardware Kits
- Owner's Manual
|
| Twisted Pair Cable Standard |
Category 6
|
| Maximum Operating Distance |
328 ft
|
| Connectivity Technology |
Wired
|
| Number of Network (RJ-45) Ports |
2
|
| Network (RJ-45) |
Yes
|
| Number of HDMI Inputs |
1
|
| HDMI In |
Yes
|
| HDMI Out |
Yes
|
| Color |
Black
|
| Form Factor |
Wall Mountable
Rack-mountable
Pole-mountable
|
| Input Voltage |
110 V AC
220 V AC
|
| Limited Warranty |
1 Year
|
Specifications
| General Information |
| Product Type |
Video Extender |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Model |
B126-1A1SR |
| Product Name |
HDMI + IR + Serial RS232 over Cat5 / 6 Active Extender Kit |
| Manufacturer Part Number |
B126-1A1SR |
| Manufacturer Website Address |
http://www.tripplite.com |
| Video |
| Graphics Modes |
4K |
| Maximum Video Resolution |
3840 x 2160 |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- Local Transmitter and Remote Receiver Units
- 2 x Sets of IR-IN Cables
- 2 x Sets of IR-OUT Cables
- 3.5 mm Male-to-DB9-Female Adapter Cable
- 3.5 mm Male-to-DB9-Male Adapter Cable
- 2 x Sets of External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 2A)
- 2 x Sets of Mounting Hardware Kits
- Owner's Manual
|
| Media & Performance |
| Twisted Pair Cable Standard |
Category 6 |
| Technical Information |
| Maximum Operating Distance |
328 ft |
| Connectivity Technology |
Wired |
| Interfaces/Ports |
| Number of Network (RJ-45) Ports |
2 |
| Network (RJ-45) |
Yes |
| Number of HDMI Inputs |
1 |
| HDMI In |
Yes |
| HDMI Out |
Yes |
| Physical Characteristics |
| Color |
Black |
| Form Factor |
Wall Mountable |
| Form Factor |
Rack-mountable |
| Form Factor |
Pole-mountable |
| Power Description |
| Input Voltage |
110 V AC |
| Input Voltage |
220 V AC |
| Warranty |
| Limited Warranty |
1 Year |
|
