Description
Condition:
New

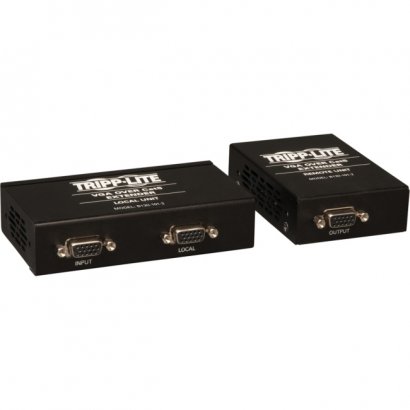

Tripp Lite's B130-101-2 allows you to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors can be further expanded by adding B132-110 repeater units. Connect up to 3 repeaters, with the B130-101-2 receiver at the end of the chain, for a total of 4 monitors. A 1920 x 1440 (60Hz) signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.
| Product Type |
Video Console/Extender
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Name |
VGA over Cat5 Extender Kit ( Transmitter + Receiver )
|
| Manufacturer Part Number |
B130-101-2
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- Local (Transmitter) Unit 1 x 4.5 x 2.5 (in.)
- Remote (Receiver) Unit 1 x 2.5 x 3.5 (in.)
- Mini-Screwdriver for EQ/Gain Adjustment
- 2 x Mounting Hardware Kits
- 2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
- Owner's Manual
|
| Maximum Video Resolution |
1920 x 1440
|
| Twisted Pair Cable Standard |
Category 6
|
| Media Type Supported |
Twisted Pair
|
| Maximum Operating Distance |
1000 ft
|
| Number of Output Devices Supported |
2
|
| Number of Input Devices Supported |
1
|
| Connectivity Technology |
Wired
|
| Number of Network (RJ-45) Ports |
2
|
| Network (RJ-45) |
Yes
|
| VGA In |
Yes
|
| Number of VGA Inputs |
1
|
| Color |
Black
|
| Form Factor |
Wall Mountable
Rack-mountable
Pole-mountable
|
| Input Voltage |
110 V AC
220 V AC
|
| Limited Warranty |
1 Year
|
Specifications
| General Information |
| Product Type |
Video Console/Extender |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Name |
VGA over Cat5 Extender Kit ( Transmitter + Receiver ) |
| Manufacturer Part Number |
B130-101-2 |
| Manufacturer Website Address |
http://www.tripplite.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- Local (Transmitter) Unit 1 x 4.5 x 2.5 (in.)
- Remote (Receiver) Unit 1 x 2.5 x 3.5 (in.)
- Mini-Screwdriver for EQ/Gain Adjustment
- 2 x Mounting Hardware Kits
- 2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
- Owner's Manual
|
| Video |
| Maximum Video Resolution |
1920 x 1440 |
| Media & Performance |
| Twisted Pair Cable Standard |
Category 6 |
| Media Type Supported |
Twisted Pair |
| Technical Information |
| Maximum Operating Distance |
1000 ft |
| Number of Output Devices Supported |
2 |
| Number of Input Devices Supported |
1 |
| Connectivity Technology |
Wired |
| Interfaces/Ports |
| Number of Network (RJ-45) Ports |
2 |
| Network (RJ-45) |
Yes |
| VGA In |
Yes |
| Number of VGA Inputs |
1 |
| Physical Characteristics |
| Color |
Black |
| Form Factor |
Wall Mountable |
| Form Factor |
Rack-mountable |
| Form Factor |
Pole-mountable |
| Power Description |
| Input Voltage |
110 V AC |
| Input Voltage |
220 V AC |
| Warranty |
| Limited Warranty |
1 Year |
|
