Description
Condition:
New

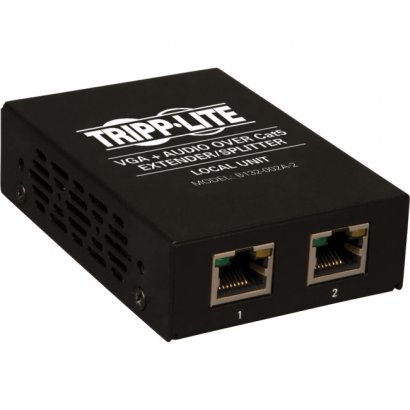

Tripp Lite's B132-002A-2 allows you to split a single VGA Video and Audio signal into 2. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
| Product Type |
Video Extender
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Model |
B132-002A-2
|
| Product Name |
VGA + Audio over Cat5 Extender 2-Port Transmitter
|
| Manufacturer Part Number |
B132-002A-2
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- VGA + Audio over Cat5 Extender 2-Port Transmitter
- Mounting Hardware
- External Power Supply (Input: 100-240V, 50/60Hz, 1.5A Output: 12.6V, 3A)
- Owner's Manual
|
| Maximum Video Resolution |
1920 x 1440
|
| Twisted Pair Cable Standard |
Category 6
|
| Media Type Supported |
Twisted Pair
|
| Maximum Operating Distance |
1000 ft
|
| Number of Input Devices Supported |
1
|
| Connectivity Technology |
Wired
|
| Number of Network (RJ-45) Ports |
2
|
| Network (RJ-45) |
Yes
|
| VGA In |
Yes
|
| Number of VGA Inputs |
1
|
| Height |
1"
|
| Width |
2.5"
|
| Depth |
3.7"
|
| Color |
Black
|
| Form Factor |
Wall Mountable
Rack-mountable
Pole-mountable
|
| Weight (Approximate) |
7.20 oz
|
| Input Voltage |
110 V AC
220 V AC
|
| Limited Warranty |
1 Year
|
Specifications
| General Information |
| Product Type |
Video Extender |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Model |
B132-002A-2 |
| Product Name |
VGA + Audio over Cat5 Extender 2-Port Transmitter |
| Manufacturer Part Number |
B132-002A-2 |
| Manufacturer Website Address |
http://www.tripplite.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- VGA + Audio over Cat5 Extender 2-Port Transmitter
- Mounting Hardware
- External Power Supply (Input: 100-240V, 50/60Hz, 1.5A Output: 12.6V, 3A)
- Owner's Manual
|
| Video |
| Maximum Video Resolution |
1920 x 1440 |
| Media & Performance |
| Twisted Pair Cable Standard |
Category 6 |
| Media Type Supported |
Twisted Pair |
| Technical Information |
| Maximum Operating Distance |
1000 ft |
| Number of Input Devices Supported |
1 |
| Connectivity Technology |
Wired |
| Interfaces/Ports |
| Number of Network (RJ-45) Ports |
2 |
| Network (RJ-45) |
Yes |
| VGA In |
Yes |
| Number of VGA Inputs |
1 |
| Physical Characteristics |
| Height |
1" |
| Width |
2.5" |
| Depth |
3.7" |
| Color |
Black |
| Form Factor |
Wall Mountable |
| Form Factor |
Rack-mountable |
| Form Factor |
Pole-mountable |
| Weight (Approximate) |
7.20 oz |
| Power Description |
| Input Voltage |
110 V AC |
| Input Voltage |
220 V AC |
| Warranty |
| Limited Warranty |
1 Year |
|
