Description
Condition:
New

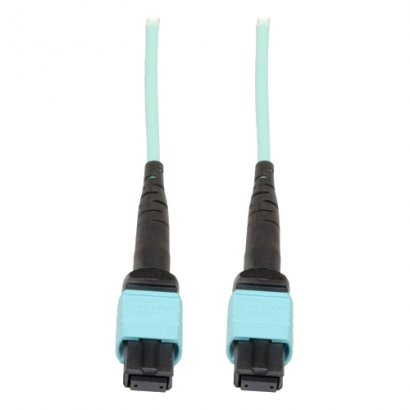

Tripp Lite MTP/MPO to MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms. They use a simple push-pull latching mechanism for easy and intuitive insertion and removal. The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 12 fibers, it provides up to 12 times the density, thereby offering savings in circuit card and rack space. N844 series cables are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 40GbE.
| Product Type |
Network Cable
|
| Product Series |
N844
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Model |
N844-03M-12-P
|
| Product Name |
3 Meter MTP / MPO Patch Cable, 12 Fiber, 40GbE Aqua OM3 Plenum
|
| Manufacturer Part Number |
N844-03M-12-P
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Color |
Aqua
|
| Cable Characteristic |
Patch Cable
|
| Connector on First End |
1 x MTP Female Network
|
| Connector on Second End |
1 x MTP Female Network
|
| Cable Type |
Fiber Optic
|
| Fiber Optic Mode |
Multi-mode
|
| Device Supported |
Network Device
|
| Cable Length |
9.84 ft
|
| Limited Warranty |
Lifetime
|
Specifications
| General Information |
| Product Type |
Network Cable |
| Product Series |
N844 |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Model |
N844-03M-12-P |
| Product Name |
3 Meter MTP / MPO Patch Cable, 12 Fiber, 40GbE Aqua OM3 Plenum |
| Manufacturer Part Number |
N844-03M-12-P |
| Manufacturer Website Address |
http://www.tripplite.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Physical Characteristics |
| Color |
Aqua |
| Technical Information |
| Cable Characteristic |
Patch Cable |
| Connector on First End |
1 x MTP Female Network |
| Connector on Second End |
1 x MTP Female Network |
| Cable Type |
Fiber Optic |
| Fiber Optic Mode |
Multi-mode |
| Device Supported |
Network Device |
| Cable Length |
9.84 ft |
| Warranty |
| Limited Warranty |
Lifetime |
|
