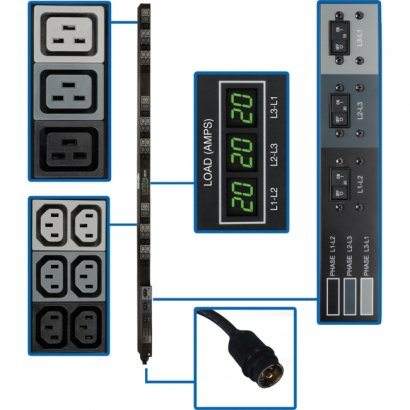

Tripp Lite Metered 45-Outlets PDU PDU3MV6H50
Manufacturer: Tripp Lite Product ID: PDU3MV6H50 UPC:
37332163868
|
Description & Specs
|
Reviews
|
Warranty
|
Description
Condition:
New
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Product Type |
PDU
|
| Product Series |
Metered
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Model |
PDU3MV6H50
|
| Product Name |
Metered PDU3MV6H50 45-Outlets PDU
|
| Manufacturer Part Number |
PDU3MV6H50
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Package Contents |
- Metered PDU3MV6H50 45-Outlets PDU
- Cord Retention Brackets
- Rack Mounting Brackets
- Owner's Manual
|
| Height |
70"
|
| Width |
2.7"
|
| Depth |
2.2"
|
| Form Factor |
Vertical Rackmount
|
| Weight (Approximate) |
14.50 lb
|
| Power Rating |
12.60 kVA
|
| Input Voltage |
208 V AC
|
| Output Voltage |
208 V AC
|
| Input Receptacles |
Hubbell CS8365C
|
| Output Receptacles |
9 x IEC 60320 C19
36 x IEC 60320 C13
|
| Protection Type |
Overload Protection
|
| Limited Warranty |
2 Year
|
Specifications
| General Information |
| Product Type |
PDU |
| Product Series |
Metered |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Model |
PDU3MV6H50 |
| Product Name |
Metered PDU3MV6H50 45-Outlets PDU |
| Manufacturer Part Number |
PDU3MV6H50 |
| Manufacturer Website Address |
http://www.tripplite.com |
| Miscellaneous |
| Package Contents |
- Metered PDU3MV6H50 45-Outlets PDU
- Cord Retention Brackets
- Rack Mounting Brackets
- Owner's Manual
|
| Physical Characteristics |
| Height |
70" |
| Width |
2.7" |
| Depth |
2.2" |
| Form Factor |
Vertical Rackmount |
| Weight (Approximate) |
14.50 lb |
| Power Description |
| Power Rating |
12.60 kVA |
| Input Voltage |
208 V AC |
| Output Voltage |
208 V AC |
| Technical Information |
| Input Receptacles |
Hubbell CS8365C |
| Output Receptacles |
9 x IEC 60320 C19 |
| Output Receptacles |
36 x IEC 60320 C13 |
| Protection Type |
Overload Protection |
| Warranty |
| Limited Warranty |
2 Year |
|
|
