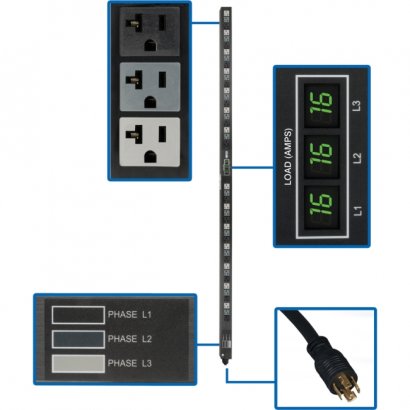

Tripp Lite 3-Phase Metered PDU PDU3MV6L2120LV
Manufacturer: Tripp Lite Product ID: PDU3MV6L2120LV UPC:
37332163899
Description & Specs
|
Reviews
|
Warranty
|
Description
Condition:
New
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Product Type |
PDU
|
Product Series |
Metered
|
Brand Name |
Tripp Lite
|
Manufacturer |
Tripp Lite
|
Product Model |
PDU3MV6L2120LV
|
Product Name |
3-Phase Metered PDU
|
Manufacturer Part Number |
PDU3MV6L2120LV
|
Manufacturer Website Address |
http://www.tripplite.com
|
Package Contents |
- 3-Phase Metered PDU
- Cord Retention Brackets
- Rack Mounting Brackets
- User Manual
|
Height |
70"
|
Width |
1.9"
|
Depth |
2.2"
|
Form Factor |
Vertical Rackmount
Toolless-mount
|
Weight (Approximate) |
12.57 lb
|
Power Rating |
5.70 kVA
|
Input Voltage |
208 V AC
|
Output Voltage |
120 V AC
|
Input Receptacles |
NEMA L21-20P
|
Output Receptacles |
42 x NEMA 5-15/20R
|
Limited Warranty |
2 Year Limited
|
Specifications
General Information |
Product Type |
PDU |
Product Series |
Metered |
Brand Name |
Tripp Lite |
Manufacturer |
Tripp Lite |
Product Model |
PDU3MV6L2120LV |
Product Name |
3-Phase Metered PDU |
Manufacturer Part Number |
PDU3MV6L2120LV |
Manufacturer Website Address |
http://www.tripplite.com |
Miscellaneous |
Package Contents |
- 3-Phase Metered PDU
- Cord Retention Brackets
- Rack Mounting Brackets
- User Manual
|
Physical Characteristics |
Height |
70" |
Width |
1.9" |
Depth |
2.2" |
Form Factor |
Vertical Rackmount |
Form Factor |
Toolless-mount |
Weight (Approximate) |
12.57 lb |
Power Description |
Power Rating |
5.70 kVA |
Input Voltage |
208 V AC |
Output Voltage |
120 V AC |
Technical Information |
Input Receptacles |
NEMA L21-20P |
Output Receptacles |
42 x NEMA 5-15/20R |
Warranty |
Limited Warranty |
2 Year Limited |
|
|
