Description
Condition:
New

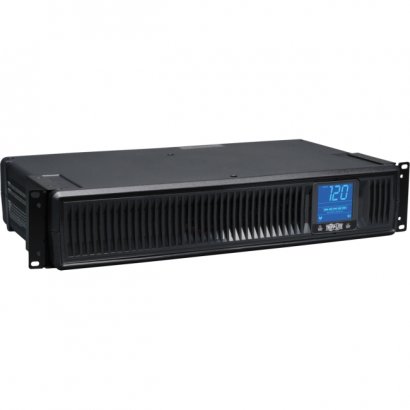

Tripp Lite's SMART1500LCDXL Line-Interactive UPS System offers network-grade voltage regulation, surge suppression and long-lasting battery support. Interactive LCD display offers detailed site voltage and UPS status information, plus a variety of UPS control options. High 97% efficient line power mode operation offers reduced UPS energy consumption and BTU heat output. Automatic Voltage Regulation / AVR circuits boost brownouts and reduce over voltages from 75V to 147V to safe 120V nominal levels without using battery power. Included mounting accessories enable 2U horizontal rackmount installation in 2 and 4 post racks or upright tower installation. Built-in USB and DB9 serial port enables optional unattended system shutdown in case of extended power failure using PowerAlert UPS management software. Built-in data line surge suppression jacks offer protection for equipment with single-line dialup, DSL or network Ethernet connection.
| Product Type |
Line-interactive UPS
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Model |
SMART1500LCDXL
|
| Product Name |
Smart LCD SMART1500LCDXL 1500 VA Tower/Rack Mountable UPS
|
| Manufacturer Part Number |
SMART1500LCDXL
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Maximum Battery Recharge Time |
4.50 Hour
|
| Backup/Run Time (Half Load) |
12 Minute
|
| Backup/Run Time (Full Load) |
4 Minute
|
| USB |
Yes
|
| Serial Port |
Yes
|
| Load Capacity (VA) |
1500 VA
|
| Load Capacity (Watt) |
900 W
|
| Input Voltage |
110 V AC
|
| Output Voltage |
120 V AC
|
| Height |
3.5"
|
| Width |
17.3"
|
| Depth |
10.5"
|
| Rack Height |
2U
|
| Form Factor |
Tower/Rack Mountable
|
| Weight (Approximate) |
29.40 lb
|
| Receptacles |
8 x NEMA 5-15R
|
| Plug/Connector Type |
NEMA 5-15P
|
| Package Contents |
- Smart LCD SMART1500LCDXL 1500 VA Tower/Rack Mountable UPS
- USB Cable
- Serial Cable
- Phone Cable
- Rack/Tower Mounting Kit
- Owner's Manual
|
| Limited Warranty |
3 Year
|
Specifications
| General Information |
| Product Type |
Line-interactive UPS |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Model |
SMART1500LCDXL |
| Product Name |
Smart LCD SMART1500LCDXL 1500 VA Tower/Rack Mountable UPS |
| Manufacturer Part Number |
SMART1500LCDXL |
| Manufacturer Website Address |
http://www.tripplite.com |
| Battery Information |
| Maximum Battery Recharge Time |
4.50 Hour |
| Backup/Run Time (Half Load) |
12 Minute |
| Backup/Run Time (Full Load) |
4 Minute |
| Interfaces/Ports |
| USB |
Yes |
| Serial Port |
Yes |
| Power Description |
| Load Capacity (VA) |
1500 VA |
| Load Capacity (Watt) |
900 W |
| Input Voltage |
110 V AC |
| Output Voltage |
120 V AC |
| Physical Characteristics |
| Height |
3.5" |
| Width |
17.3" |
| Depth |
10.5" |
| Rack Height |
2U |
| Form Factor |
Tower/Rack Mountable |
| Weight (Approximate) |
29.40 lb |
| Technical Information |
| Receptacles |
8 x NEMA 5-15R |
| Plug/Connector Type |
NEMA 5-15P |
| Miscellaneous |
| Package Contents |
- Smart LCD SMART1500LCDXL 1500 VA Tower/Rack Mountable UPS
- USB Cable
- Serial Cable
- Phone Cable
- Rack/Tower Mounting Kit
- Owner's Manual
|
| Warranty |
| Limited Warranty |
3 Year |
|
