Description
Condition:
New

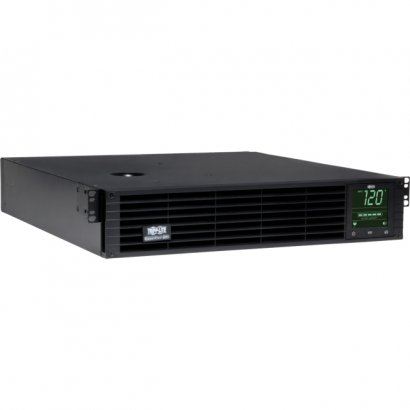

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and Pre-installed SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
Product Type |
Line-interactive UPS
|
Brand Name |
Tripp Lite
|
Manufacturer |
Tripp Lite
|
Product Model |
SMART2200RM2UN
|
Product Name |
SmartPro SMART2200RM2UN 2200VA Rack-mountable UPS
|
Product Line |
SmartPro
|
Manufacturer Part Number |
SMART2200RM2UN
|
Manufacturer Website Address |
http://www.tripplite.com
|
Maximum Battery Recharge Time |
4.50 Hour
|
Backup/Run Time (Half Load) |
12 Minute
|
Backup/Run Time (Full Load) |
4.50 Minute
|
USB |
Yes
|
Serial Port |
Yes
|
Load Capacity (VA) |
2200 VA
|
Load Capacity (Watt) |
1920 W
|
Input Voltage |
110 V AC
|
Output Voltage |
120 V AC
|
Height |
3.5"
|
Width |
17.5"
|
Depth |
19.5"
|
Rack Height |
2U
|
Form Factor |
Rack-mountable
|
Weight (Approximate) |
57.60 lb
|
Receptacles |
4 x NEMA 5-15R
4 x NEMA 5-15/20R
|
Plug/Connector Type |
NEMA 5-20P
|
Network Management |
SNMP Manageable
|
Package Contents |
- SmartPro SMART2200RM2UN 2.2kVA Rack-mountable UPS
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Rackmount Installation kit
- Instruction Manual
- Network Interface Card
|
Limited Warranty |
2 Year
|
Specifications
General Information |
Product Type |
Line-interactive UPS |
Brand Name |
Tripp Lite |
Manufacturer |
Tripp Lite |
Product Model |
SMART2200RM2UN |
Product Name |
SmartPro SMART2200RM2UN 2200VA Rack-mountable UPS |
Product Line |
SmartPro |
Manufacturer Part Number |
SMART2200RM2UN |
Manufacturer Website Address |
http://www.tripplite.com |
Battery Information |
Maximum Battery Recharge Time |
4.50 Hour |
Backup/Run Time (Half Load) |
12 Minute |
Backup/Run Time (Full Load) |
4.50 Minute |
Interfaces/Ports |
USB |
Yes |
Serial Port |
Yes |
Power Description |
Load Capacity (VA) |
2200 VA |
Load Capacity (Watt) |
1920 W |
Input Voltage |
110 V AC |
Output Voltage |
120 V AC |
Physical Characteristics |
Height |
3.5" |
Width |
17.5" |
Depth |
19.5" |
Rack Height |
2U |
Form Factor |
Rack-mountable |
Weight (Approximate) |
57.60 lb |
Technical Information |
Receptacles |
4 x NEMA 5-15R |
Receptacles |
4 x NEMA 5-15/20R |
Plug/Connector Type |
NEMA 5-20P |
Management |
Network Management |
SNMP Manageable |
Miscellaneous |
Package Contents |
- SmartPro SMART2200RM2UN 2.2kVA Rack-mountable UPS
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Rackmount Installation kit
- Instruction Manual
- Network Interface Card
|
Warranty |
Limited Warranty |
2 Year |
|
