Description
Condition:
New

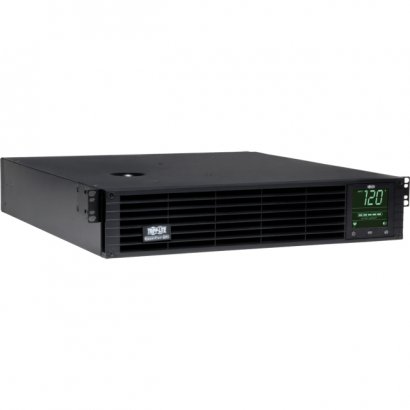

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and pre-installed SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
| Product Type |
Line-interactive UPS
|
| Product Series |
SmartPro
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Model |
SMART2200RMXLN
|
| Product Name |
SMART2200RMXLN UPS System with Pre-installed SNMPWEBCARD
|
| Manufacturer Part Number |
SMART2200RMXLN
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Maximum Battery Recharge Time |
4.50 Hour
|
| Backup/Run Time (Half Load) |
12 Minute
|
| Backup/Run Time (Full Load) |
4.50 Minute
|
| USB |
Yes
|
| Serial Port |
Yes
|
| Load Capacity (VA) |
2200 VA
|
| Load Capacity (Watt) |
1920 W
|
| Input Voltage |
110 V AC
|
| Output Voltage |
120 V AC
|
| Height |
3.4"
|
| Width |
17.3"
|
| Depth |
19.5"
|
| Rack Height |
2U
|
| Form Factor |
Tower/Rack Mountable
|
| Weight (Approximate) |
57.60 lb
|
| Receptacles |
4 x NEMA 5-15R
4 x NEMA 5-15/20R
|
| Plug/Connector Type |
NEMA 5-20P
|
| Network Management |
SNMP Manageable
|
| Package Contents |
- SMART2200RMXLN UPS system with Pre-installed SNMPWEBCARD
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Installation Kit
- Owner's Manual
|
| Limited Warranty |
2 Year
|
Specifications
| General Information |
| Product Type |
Line-interactive UPS |
| Product Series |
SmartPro |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Model |
SMART2200RMXLN |
| Product Name |
SMART2200RMXLN UPS System with Pre-installed SNMPWEBCARD |
| Manufacturer Part Number |
SMART2200RMXLN |
| Manufacturer Website Address |
http://www.tripplite.com |
| Battery Information |
| Maximum Battery Recharge Time |
4.50 Hour |
| Backup/Run Time (Half Load) |
12 Minute |
| Backup/Run Time (Full Load) |
4.50 Minute |
| Interfaces/Ports |
| USB |
Yes |
| Serial Port |
Yes |
| Power Description |
| Load Capacity (VA) |
2200 VA |
| Load Capacity (Watt) |
1920 W |
| Input Voltage |
110 V AC |
| Output Voltage |
120 V AC |
| Physical Characteristics |
| Height |
3.4" |
| Width |
17.3" |
| Depth |
19.5" |
| Rack Height |
2U |
| Form Factor |
Tower/Rack Mountable |
| Weight (Approximate) |
57.60 lb |
| Technical Information |
| Receptacles |
4 x NEMA 5-15R |
| Receptacles |
4 x NEMA 5-15/20R |
| Plug/Connector Type |
NEMA 5-20P |
| Management |
| Network Management |
SNMP Manageable |
| Miscellaneous |
| Package Contents |
- SMART2200RMXLN UPS system with Pre-installed SNMPWEBCARD
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Installation Kit
- Owner's Manual
|
| Warranty |
| Limited Warranty |
2 Year |
|
