Description
Condition:
New

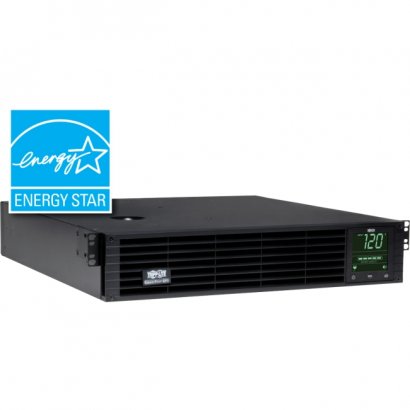

The SMART3000RM2UN is ENERGY STAR qualified for its ability to save customers money while helping to protect the environment. Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and pre-installed SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
| Product Type |
Line-interactive UPS
|
| Product Series |
SmartPro
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Model |
SMART3000RM2UN
|
| Product Name |
SMART3000RM2UN UPS System with Pre-installed SNMPWEBCARD
|
| Manufacturer Part Number |
SMART3000RM2UN
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Maximum Battery Recharge Time |
4.50 Hour
|
| Backup/Run Time (Half Load) |
10 Minute
|
| Backup/Run Time (Full Load) |
3.50 Minute
|
| USB |
Yes
|
| Serial Port |
Yes
|
| Load Capacity (VA) |
3000 VA
|
| Load Capacity (Watt) |
2250 W
|
| Input Voltage |
110 V AC
|
| Output Voltage |
120 V AC
|
| Height |
3.5"
|
| Width |
17.5"
|
| Depth |
19.5"
|
| Rack Height |
2U
|
| Form Factor |
Tower/Rack Mountable
|
| Weight (Approximate) |
62.80 lb
|
| Receptacles |
1 x NEMA L5-30R
8 x NEMA 5-15/20R
|
| Plug/Connector Type |
NEMA L5-30P
|
| Network Management |
SNMP Manageable
|
| Package Contents |
- SMART2200RMXLN UPS system with Pre-installed SNMPWEBCARD
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Installation Kit
- Instruction Manual
|
| Limited Warranty |
2 Year
|
Specifications
| General Information |
| Product Type |
Line-interactive UPS |
| Product Series |
SmartPro |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Model |
SMART3000RM2UN |
| Product Name |
SMART3000RM2UN UPS System with Pre-installed SNMPWEBCARD |
| Manufacturer Part Number |
SMART3000RM2UN |
| Manufacturer Website Address |
http://www.tripplite.com |
| Battery Information |
| Maximum Battery Recharge Time |
4.50 Hour |
| Backup/Run Time (Half Load) |
10 Minute |
| Backup/Run Time (Full Load) |
3.50 Minute |
| Interfaces/Ports |
| USB |
Yes |
| Serial Port |
Yes |
| Power Description |
| Load Capacity (VA) |
3000 VA |
| Load Capacity (Watt) |
2250 W |
| Input Voltage |
110 V AC |
| Output Voltage |
120 V AC |
| Physical Characteristics |
| Height |
3.5" |
| Width |
17.5" |
| Depth |
19.5" |
| Rack Height |
2U |
| Form Factor |
Tower/Rack Mountable |
| Weight (Approximate) |
62.80 lb |
| Technical Information |
| Receptacles |
1 x NEMA L5-30R |
| Receptacles |
8 x NEMA 5-15/20R |
| Plug/Connector Type |
NEMA L5-30P |
| Management |
| Network Management |
SNMP Manageable |
| Miscellaneous |
| Package Contents |
- SMART2200RMXLN UPS system with Pre-installed SNMPWEBCARD
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Installation Kit
- Instruction Manual
|
| Warranty |
| Limited Warranty |
2 Year |
|
