Description
Condition:
New

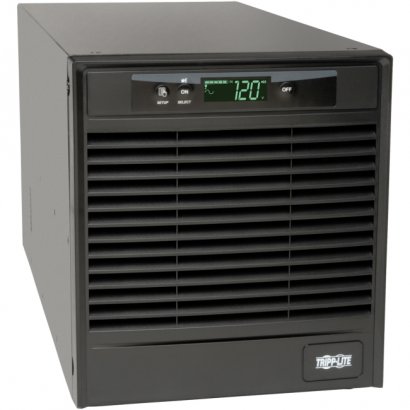

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in a variety of application environments. Online, double-conversion Uninterruptible Power Supply / UPS maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Battery independent restart. Field-replaceable, hot-swappable internal batteries and external battery packs.
| Product Type |
Dual Conversion Online UPS
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Name |
SmartOnline SU2200XLCD 2200VA Tower UPS
|
| Product Line |
SmartOnline
|
| Manufacturer Part Number |
SU2200XLCD
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Maximum Battery Recharge Time |
3 Hour
|
| Backup/Run Time (Half Load) |
13 Minute
|
| Backup/Run Time (Full Load) |
4.50 Minute
|
| USB |
Yes
|
| Serial Port |
Yes
|
| Load Capacity (VA) |
2200 VA
|
| Load Capacity (Watt) |
1800 W
|
| Input Voltage |
110 V AC
|
| Output Voltage |
127 V AC
110 V AC
120 V AC
|
| Height |
10.2"
|
| Width |
9"
|
| Depth |
19.5"
|
| Form Factor |
Tower
|
| Weight (Approximate) |
52.90 lb
|
| Receptacles |
1 x NEMA L5-20R
6 x NEMA 5-15/20R
|
| Plug/Connector Type |
NEMA 5-20P
|
| Network Management |
SNMP Manageable
|
| Package Contents |
- SmartOnline SU2200XLCD 2200VA Tower UPS
- PowerAlert Software CD
- USB and DB9 Cabling
- Owner's Manual with Warranty Information
- EPO (Emergency Power Off) Cabling
|
| Limited Warranty |
2 Year
|
Specifications
| General Information |
| Product Type |
Dual Conversion Online UPS |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Name |
SmartOnline SU2200XLCD 2200VA Tower UPS |
| Product Line |
SmartOnline |
| Manufacturer Part Number |
SU2200XLCD |
| Manufacturer Website Address |
http://www.tripplite.com |
| Battery Information |
| Maximum Battery Recharge Time |
3 Hour |
| Backup/Run Time (Half Load) |
13 Minute |
| Backup/Run Time (Full Load) |
4.50 Minute |
| Interfaces/Ports |
| USB |
Yes |
| Serial Port |
Yes |
| Power Description |
| Load Capacity (VA) |
2200 VA |
| Load Capacity (Watt) |
1800 W |
| Input Voltage |
110 V AC |
| Output Voltage |
127 V AC |
| Output Voltage |
110 V AC |
| Output Voltage |
120 V AC |
| Physical Characteristics |
| Height |
10.2" |
| Width |
9" |
| Depth |
19.5" |
| Form Factor |
Tower |
| Weight (Approximate) |
52.90 lb |
| Technical Information |
| Receptacles |
1 x NEMA L5-20R |
| Receptacles |
6 x NEMA 5-15/20R |
| Plug/Connector Type |
NEMA 5-20P |
| Management |
| Network Management |
SNMP Manageable |
| Miscellaneous |
| Package Contents |
- SmartOnline SU2200XLCD 2200VA Tower UPS
- PowerAlert Software CD
- USB and DB9 Cabling
- Owner's Manual with Warranty Information
- EPO (Emergency Power Off) Cabling
|
| Warranty |
| Limited Warranty |
2 Year |
|
