Description
Condition:
New

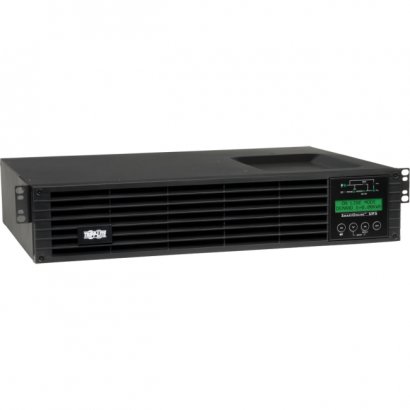

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.
| Product Type |
Dual Conversion Online UPS
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Name |
SU750RTXLCD2U UPS System
|
| Product Line |
SmartOnline
|
| Manufacturer Part Number |
SU750RTXLCD2U
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Maximum Battery Recharge Time |
3 Hour
|
| Backup/Run Time (Half Load) |
9 Minute
|
| Backup/Run Time (Full Load) |
3 Minute
|
| USB |
Yes
|
| Serial Port |
Yes
|
| Load Capacity (VA) |
750 VA
|
| Load Capacity (Watt) |
675 W
|
| Input Voltage |
110 V AC
|
| Output Voltage |
127 V AC
110 V AC
120 V AC
|
| Height |
3.5"
|
| Width |
17.5"
|
| Depth |
12.5"
|
| Rack Height |
2U
|
| Form Factor |
Tower/Rack Mountable
|
| Weight (Approximate) |
27.60 lb
|
| Receptacles |
6 x NEMA 5-15R
|
| Plug/Connector Type |
NEMA 5-15P
|
| Network Management |
SNMP Manageable
|
| Package Contents |
- SU750RTXLCD2U UPS System
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Rackmount Installation Kit
- Instruction Manual
|
| Limited Warranty |
2 Year
|
Specifications
| General Information |
| Product Type |
Dual Conversion Online UPS |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Name |
SU750RTXLCD2U UPS System |
| Product Line |
SmartOnline |
| Manufacturer Part Number |
SU750RTXLCD2U |
| Manufacturer Website Address |
http://www.tripplite.com |
| Battery Information |
| Maximum Battery Recharge Time |
3 Hour |
| Backup/Run Time (Half Load) |
9 Minute |
| Backup/Run Time (Full Load) |
3 Minute |
| Interfaces/Ports |
| USB |
Yes |
| Serial Port |
Yes |
| Power Description |
| Load Capacity (VA) |
750 VA |
| Load Capacity (Watt) |
675 W |
| Input Voltage |
110 V AC |
| Output Voltage |
127 V AC |
| Output Voltage |
110 V AC |
| Output Voltage |
120 V AC |
| Physical Characteristics |
| Height |
3.5" |
| Width |
17.5" |
| Depth |
12.5" |
| Rack Height |
2U |
| Form Factor |
Tower/Rack Mountable |
| Weight (Approximate) |
27.60 lb |
| Technical Information |
| Receptacles |
6 x NEMA 5-15R |
| Plug/Connector Type |
NEMA 5-15P |
| Management |
| Network Management |
SNMP Manageable |
| Miscellaneous |
| Package Contents |
- SU750RTXLCD2U UPS System
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Rackmount Installation Kit
- Instruction Manual
|
| Warranty |
| Limited Warranty |
2 Year |
|
