Description
Condition:
New

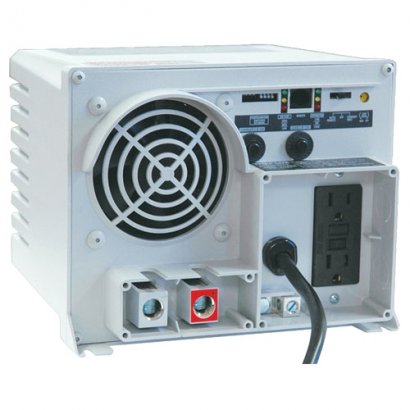

Tripp Lite UT750UL Utility Work Truck Inverter / Charger are the quiet alternative to gas generators with no fumes, fuel or noise. It provides equipment with utility or generator supplied AC electricity filtered through premium ISOBAR surge protection. This DC-to-AC inverter with automatic line to battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter suitable for rugged work site applications. Supplies up to 750 watts of continuous 120V AC power from any 12V DC battery or automotive DC source. OverPower inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes, and DoubleBoost inverter output feature delivers up to 200% of continuous output for up to 10 seconds. When AC cable is connected to a live wall socket, commercial power passes through to connected equipment and the battery set is recharged via 3 stage selectable 11/45Amp charging system.
| Product Type |
Power Inverter
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Model |
UT750UL
|
| Product Name |
PowerVerter 750W Utility/Work Truck Inverter with 2 Outlets
|
| Product Line |
PowerVerter
|
| Manufacturer Part Number |
UT750UL
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Package Contents |
- PowerVerter 750W Utility/Work Truck Inverter with 2 Outlets
- Remote Control
- Remote Battery Temperature Sensor Cable
- Instruction Manual with Warranty Information
|
| Height |
7"
|
| Width |
8.8"
|
| Depth |
9"
|
| Weight (Approximate) |
17.40 lb
|
| Frequency |
60 Hz ?0.3Hz
|
| Load Capacity |
750 W Continuous Power / 1.50 kW Peak Power
|
| Waveform Type |
Pulse-width Modulated Sine Wave
|
| Input Voltage |
120 V AC
12 V DC
|
| Output Voltage |
120 V AC ?5%
|
| Receptacles |
2 x NEMA 5-15R
|
| Plug/Connector Type |
NEMA 5-15R
Terminal Block
|
| Limited Warranty |
30 Month Limited
|
Specifications
| General Information |
| Product Type |
Power Inverter |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Model |
UT750UL |
| Product Name |
PowerVerter 750W Utility/Work Truck Inverter with 2 Outlets |
| Product Line |
PowerVerter |
| Manufacturer Part Number |
UT750UL |
| Manufacturer Website Address |
http://www.tripplite.com |
| Miscellaneous |
| Package Contents |
- PowerVerter 750W Utility/Work Truck Inverter with 2 Outlets
- Remote Control
- Remote Battery Temperature Sensor Cable
- Instruction Manual with Warranty Information
|
| Physical Characteristics |
| Height |
7" |
| Width |
8.8" |
| Depth |
9" |
| Weight (Approximate) |
17.40 lb |
| Power Description |
| Frequency |
60 Hz ?0.3Hz |
| Load Capacity |
750 W Continuous Power / 1.50 kW Peak Power |
| Waveform Type |
Pulse-width Modulated Sine Wave |
| Input Voltage |
120 V AC |
| Input Voltage |
12 V DC |
| Output Voltage |
120 V AC ?5% |
| Technical Information |
| Receptacles |
2 x NEMA 5-15R |
| Plug/Connector Type |
NEMA 5-15R |
| Plug/Connector Type |
Terminal Block |
| Warranty |
| Limited Warranty |
30 Month Limited |
|
