Description
Condition:
New

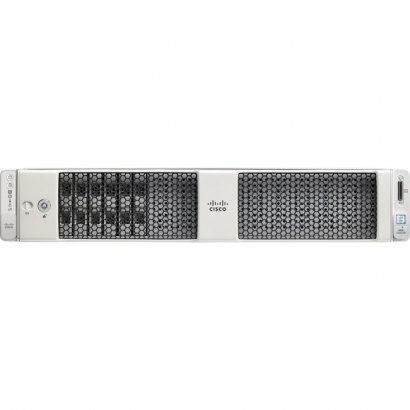

UCS C240 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666 MHz DDR4 DIMMs and up to 128GB capacity points, up to 6 PCI Express (PCIe) 3.0 slots, and up to 26 internal SFF drives. The C240 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.The C240 M5 server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded(on the motherboard) LOM ports.The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments. UCS C240 M5 Server
Specifications
General Information Product Type: ServerProduct Series: C240 M5Brand Name: CiscoManufacturer: Cisco Systems, IncProduct Name: UCS C240 M5 ServerManufacturer Part Number: UCS-SPR-C240M5-S6Manufacturer Website Address: http://www.cisco.comProcessor & Chipset Processor Core: Deca-core (10 Core)Processor Manufacturer: IntelNumber of Processors Supported: 2Number of Processors Installed: 2Processor Model: 4114Processor Speed: 2.20 GHzProcessor Type: Xeon SilverDisplay & Graphics Graphics Controller Manufacturer: ASPEEDGraphics Controller Model: Pilot 4Graphics Memory Capacity: Up to 16 MBPower Description Number of Power Supplies Supported: 2Number of Power Supplies Installed: 2Redundant Power Supply: YesMaximum Power Supply Wattage: 1050 WI/O Expansions Number of Internal 2.5" Bays: 26Number of Total Expansion Bays: 26Hot Swappable Bays: YesMemory Number of Total Memory Slots: 24Number of Occupied Memory Slots: 2Memory Technology: DDR4 SDRAMMaximum Memory: 3 TBStandard Memory: 32 GBStorage Optical Drive Type: NoTotal Hard Drive Capacity: NoControllers RAID Supported: YesRAID Levels: 0, 1, 5, 6, 10, 50, 60, JBODController Type: 12Gb/s SASNetwork & Communication Ethernet Technology: 10 Gigabit EthernetPhysical Characteristics Height: 3.4"Width: 19"Depth: 30.2"Rack Height: 2UForm Factor: Rack-mountableWeight (Approximate): 57.50 lbSoftware Operating System: No
|
