Description
Condition:
New

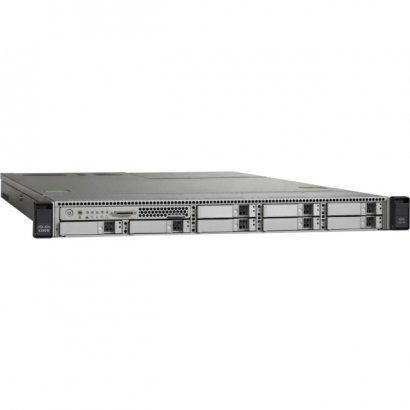

The Cisco® Unified Computing System™ (Cisco UCS) combines Cisco UCS C-Series Rack Servers and B-Series Blade Servers with networking and storage access into a single converged system that simplifies management and delivers greater cost efficiency and agility with increased visibility and control. The latest expansion of the Cisco UCS portfolio includes the new Cisco® UCS C220 M3 Rack Server (one rack unit [1RU]) and Cisco UCS C240 M3 Rack Server (2RU) and the Cisco UCS B200 M3 Blade Server. These three new servers increase compute density through more cores and cache balanced with more memory capacity, disk drives and with faster I/O. Together these server improvements and complementary Cisco UCS advancements deliver the best combination of features and cost efficiency required to support IT's diverse server needs. C220 M3 Server
Specifications
General Information Product Type: ServerProduct Series: C220 M3Brand Name: CiscoManufacturer: Cisco Systems, IncProduct Name: C220 M3 ServerManufacturer Part Number: WMS-EZ-C220-50PManufacturer Website Address: http://www.cisco.comPackaged Quantity: 1Processor & Chipset Processor Core: Quad-core (4 Core)Processor Manufacturer: IntelNumber of Processors Supported: 2Number of Processors Installed: 2Processor Model: E5-2609Processor Speed: 2.40 GHzProcessor Type: XeonDisplay & Graphics Graphics Controller Manufacturer: MatroxGraphics Controller Model: G200eGraphics Memory Capacity: Up to 256 MBPower Description Number of Power Supplies Installed: 2Maximum Power Supply Wattage: 650 WInput Voltage: 120 V ACInput Voltage: 230 V ACStorage Optical Drive Type: NoHard Drive Interface: 3Gb/s SASTotal Hard Drive Capacity: 4 TBHard Drive Configuration: 4 x 1 TBControllers RAID Supported: YesRAID Levels: 0, 1, 5, 6, 10, 50, 60Controller Type: Serial ATA/600Controller Type: 3Gb/s SASNetwork & Communication Ethernet Technology: Gigabit EthernetPhysical Characteristics Height: 1.7"Width: 16.9"Depth: 28.5"Rack Height: 1UForm Factor: RackWeight (Approximate): 22 lbMemory Memory Technology: DDR3 SDRAMMaximum Memory: 256 GBStandard Memory: 48 GB
|
