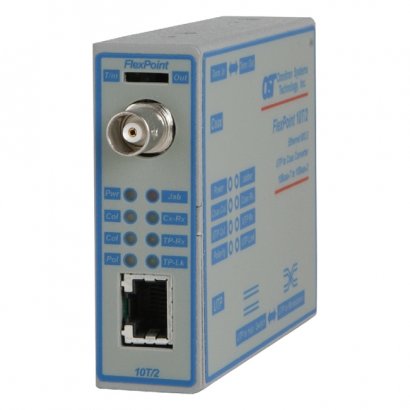

Omnitron FlexPoint Media Converter 4320-0-W

10BASE-T Copper to 10BASE-2 Coax Media ConverterThe FlexPoint 10T/2 is a Half-Duplex 10BASE-T UTP to 10BASE-2 coax media converter that facilitates the connection of a coax segment to a 10BASE-T hub or workstation.No manual configuration is required with the plug-and-play FlexPoint 10T/2. Connect the UTP and coax cables and the installation is complete.

Product Type	Transceiver/Media Converter
Brand Name	Omnitron
Manufacturer	Omnitron Systems Technology
Product Model	10T/2
Product Name	FlexPoint 10T/2 Media Converter
Product Line	FlexPoint
Manufacturer Part Number	4320-0-W
Manufacturer Website Address	http://www.omnitron-systems.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS WEEE
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Total Number of Ports	2
Height	1"
Width	3"
Depth	4"
Form Factor	Wall Mountable Rail-mountable Rack-mountable
Weight (Approximate)	6 oz
Network Technology	10Base-2 10Base-T
Maximum Distance Supported	606.96 ft
Limited Warranty	Lifetime

General Information
Product Type	Transceiver/Media Converter
Brand Name	Omnitron
Manufacturer	Omnitron Systems Technology
Product Model	10T/2
Product Name	FlexPoint 10T/2 Media Converter
Product Line	FlexPoint
Manufacturer Part Number	4320-0-W
Manufacturer Website Address	http://www.omnitron-systems.com
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Green Compliance Certificate/Authority	WEEE
Interfaces/Ports
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Total Number of Ports	2
Physical Characteristics
Height	1"
Width	3"
Depth	4"
Form Factor	Wall Mountable
Form Factor	Rail-mountable
Form Factor	Rack-mountable
Weight (Approximate)	6 oz
Network & Communication
Network Technology	10Base-2
Network Technology	10Base-T
Media & Performance
Maximum Distance Supported	606.96 ft
Warranty
Limited Warranty	Lifetime
