General Information
Product Type:
Desktop MotherboardBrand Name:
ROGManufacturer:
ASUS Computer InternationalProduct Model:

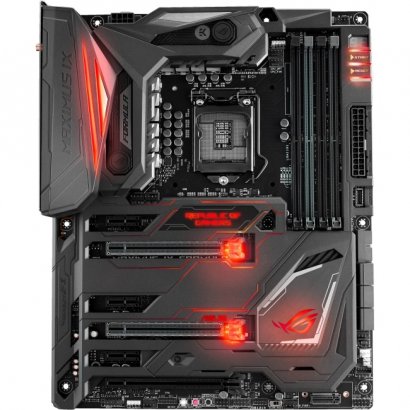

Maximus IX FormulaProduct Name:
Maximus IX Formula Desktop MotherboardManufacturer Part Number:
ROG MAXIMUS IX FORMULAManufacturer Website Address:
http://usa.asus.comMiscellaneous
Environmentally Friendly:
YesEnvironmental Certification:
RoHSPackage Contents:
- Maximus IX Formula Desktop Motherboard
- User Guide
- Support DVD
- 3 x 2-in-1 SATA 6Gb/s Cables
- 1 x SLI™ HB Bridge
- 1 x Q-Connector
- 1 x ROG Coaster
- 1 x 10-in-1 ROG Cable Label
- 1 x CPU Installation Tool
- 1 x M.2 Screw Package
- 1 x Extension Cable for RGB Strips (80cm)
- 1 x ROG sticker
Processor & Chipset
Chipset Manufacturer:
IntelChipset Model:
Z270Multi GPU Supported:
CrossFireXMulti GPU Supported:
SLIProcessor Socket:
Socket H4 LGA-1151Processor Supported:
Core i7Processor Supported:
Core i3Processor Supported:
Core i5Processor Supported:
CeleronProcessor Supported:
PentiumTotal Processor Supported:
1Memory
Number of Memory Slots:
4Memory Form Factor:
UDIMMMemory Form Factor:
DIMMMemory Speed Supported:
3 GHz (O.C.)Memory Speed Supported:
2.80 GHz (O.C.)Memory Speed Supported:
3.60 GHz (O.C.)Memory Speed Supported:
3.87 GHz (O.C.)Memory Speed Supported:
2.40 GHz (O.C.)Memory Speed Supported:
3.73 GHz (O.C.)Memory Speed Supported:
3.20 GHz (O.C.)Memory Speed Supported:
4 GHz (O.C.)Memory Speed Supported:
3.30 GHz (O.C.)Memory Speed Supported:
3.33 GHz (O.C.)Memory Speed Supported:
3.47 GHz (O.C.)Memory Speed Supported:
3.40 GHz (O.C.)Memory Speed Supported:
2.67 GHz (O.C.)Memory Speed Supported:
2.13 GHzMemory Technology:
DDR4 SDRAMMaximum Memory:
64 GBVideo
Graphics Controller Manufacturer:
IntelGraphics Controller Model:
HD GraphicsOnboard Video:
CPU Dependent VideoAudio
Audio Channels:
7.1Network & Communication
Bluetooth:
YesGigabit Ethernet:
YesWireless LAN:
YesOnboard Interfaces
Number of SATA Interfaces:
6Total Number of Onboard USB Ports:
5Number of Onboard USB 3.0 Ports:
2Number of M.2 Interfaces:
2Number of Onboard USB 3.1 Ports:
1I/O Expansions
Number of PCI Express x1 Slots:
3Number of Total Expansion Slots:
6Number of PCI Express x16 Slots:
3Total Number of PCI Express Slots:
6I/O Controller
RAID Supported:
YesRAID Levels:
10RAID Levels:
5RAID Levels:
1RAID Levels:
0Controller Type:
Serial ATA/600Interfaces/Ports
HDMI:
YesDisplayPort:
YesTotal Number of USB Ports:
10Number of USB 3.0 Ports:
4Number of USB 3.1 Ports:
2S/PDIF:
YesPhysical Characteristics
Width:
12"Depth:
9.6"Form Factor:
ATXWarranty
Limited Warranty:
3 Year
