Description
Condition:
New

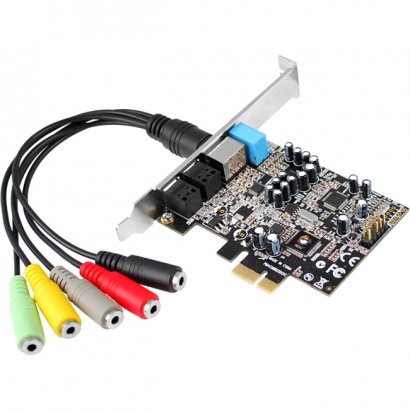

SIIG's DP SoundWave 7.1 PCIe enhances your desktop computer's audio performance to high-definition 7.1 surround sound quality. It supports audio output up to 192K sampling rate, high resolution 24bit PCM Codec, and optical SPDIF output for audio expansion. This dual-profile 7.1 channel PCIe adapter can be installed in either standard height or low profile chassis with the included bracket. It the most cost-effective solution to upgrade your existing audio capability to high-definition 7.1 channel, bringing amazing surround sound quality for better music, movie and gaming experiences from your system.
| Product Type |
Sound Board
|
| Brand Name |
SIIG
|
| Manufacturer |
SIIG, Inc
|
| Product Name |
DP SoundWave 7.1 PCIe
|
| Manufacturer Part Number |
IC-710211-S1
|
| Manufacturer Website Address |
http://www.siig.com
|
| Packaged Quantity |
1
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- DP SoundWave 7.1 PCIe
- Fanout Audio Cable
- Spare Low Profile Bracket
- Software CD
- User's Manual
|
| Height |
3.5"
|
| Width |
4.7"
|
| Form Factor |
Internal
|
| Thickness |
0.7"
|
| Weight (Approximate) |
1.92 oz
|
| Audio Processor |
C-Media CM8828+CM9882A
|
| Sampling Rate |
24 bit 192 kHz 7.1 Channel
|
| Sound Channels |
7.1
|
| Host Interface |
PCI Express
|
| Interfaces/Ports |
1 x 3.5mm Stereo Input Audio Line In
1 x Mini-DIN - for Fanout Audio Cable
1 x S/PDIF Digital Audio In
1 x S/PDIF Digital Audio Out
|
| Limited Warranty |
3 Year
|
Specifications
| General Information |
| Product Type |
Sound Board |
| Brand Name |
SIIG |
| Manufacturer |
SIIG, Inc |
| Product Name |
DP SoundWave 7.1 PCIe |
| Manufacturer Part Number |
IC-710211-S1 |
| Manufacturer Website Address |
http://www.siig.com |
| Packaged Quantity |
1 |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- DP SoundWave 7.1 PCIe
- Fanout Audio Cable
- Spare Low Profile Bracket
- Software CD
- User's Manual
|
| Physical Characteristics |
| Height |
3.5" |
| Width |
4.7" |
| Form Factor |
Internal |
| Thickness |
0.7" |
| Weight (Approximate) |
1.92 oz |
| Technical Information |
| Audio Processor |
C-Media CM8828+CM9882A |
| Sampling Rate |
24 bit 192 kHz 7.1 Channel |
| Sound Channels |
7.1 |
| Host Interface |
PCI Express |
| Interfaces/Ports |
| Interfaces/Ports |
1 x 3.5mm Stereo Input Audio Line In |
| Interfaces/Ports |
1 x Mini-DIN - for Fanout Audio Cable |
| Interfaces/Ports |
1 x S/PDIF Digital Audio In |
| Interfaces/Ports |
1 x S/PDIF Digital Audio Out |
| Warranty |
| Limited Warranty |
3 Year |
|
