Description
Condition:
New

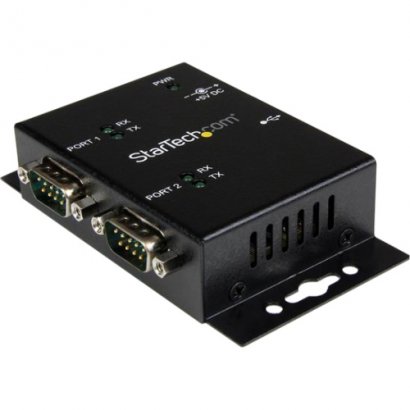

Add 2 DIN Rail-mountable RS232 Serial ports to any system through USB. The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices. Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations. This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Ports |
2 x 9-pin DB-9 Male RS-232 Serial External
1 x 4-pin Type B Female USB 2.0 USB External
|
Product Type |
Serial Hub
|
Brand Name |
StarTech.com
|
Manufacturer |
StarTech.com
|
Product Name |
2 Port Industrial Wall Mountable USB to Serial Adapter Hub with DIN Rail Clips
|
Manufacturer Part Number |
ICUSB2322I
|
Manufacturer Website Address |
http://www.startech.com
|
Green Compliant |
Yes
|
Green Compliance Certificate/Authority |
RoHS
|
Package Contents |
- 2 Port Industrial Wall Mountable USB to Serial Adapter Hub with DIN Rail Clips
- 1 x 6 ft USB A to B Cable
- 1 x DIN Rail Mounting Kit
- 1 x Driver CD
- 1 x Instruction Manual
|
Height |
1"
|
Width |
2.2"
|
Form Factor |
External
|
Length |
4.1"
|
Weight (Approximate) |
14.12 oz
|
Data Transfer Rate |
Up to 921.60 Kbps
|
Host Interface |
USB
|
Limited Warranty |
2 Year
|
Specifications
Interfaces/Ports |
Ports |
2 x 9-pin DB-9 Male RS-232 Serial External |
Ports |
1 x 4-pin Type B Female USB 2.0 USB External |
General Information |
Product Type |
Serial Hub |
Brand Name |
StarTech.com |
Manufacturer |
StarTech.com |
Product Name |
2 Port Industrial Wall Mountable USB to Serial Adapter Hub with DIN Rail Clips |
Manufacturer Part Number |
ICUSB2322I |
Manufacturer Website Address |
http://www.startech.com |
Miscellaneous |
Green Compliant |
Yes |
Green Compliance Certificate/Authority |
RoHS |
Package Contents |
- 2 Port Industrial Wall Mountable USB to Serial Adapter Hub with DIN Rail Clips
- 1 x 6 ft USB A to B Cable
- 1 x DIN Rail Mounting Kit
- 1 x Driver CD
- 1 x Instruction Manual
|
Physical Characteristics |
Height |
1" |
Width |
2.2" |
Form Factor |
External |
Length |
4.1" |
Weight (Approximate) |
14.12 oz |
Technical Information |
Data Transfer Rate |
Up to 921.60 Kbps |
Host Interface |
USB |
Warranty |
Limited Warranty |
2 Year |
|
