General Information
Product Type:
Workstation MotherboardBrand Name:
SupermicroManufacturer:
Supermicro Computer, IncProduct Model:
C7Z97-MFProduct Name:

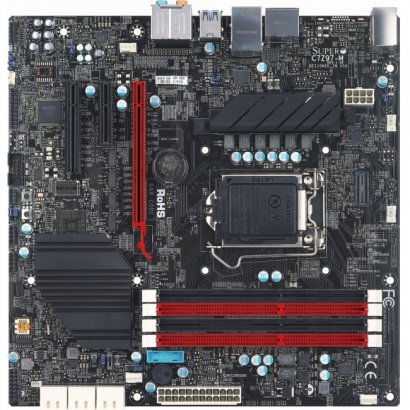

C7Z97-MF Workstation MotherboardPackage Type:
RetailManufacturer Part Number:
MBD-C7Z97-MF-OManufacturer Website Address:
http://www.supermicro.comPackaged Quantity:
1Miscellaneous
Green Compliant:
YesGreen Compliance Certificate/Authority:
RoHSProcessor & Chipset
Chipset Manufacturer:
IntelChipset Model:
Z97 ExpressProcessor Socket:
Socket H3 LGA-1150Processor Supported:
Core i7Processor Supported:
Core i5Processor Supported:
Core i3Total Processor Supported:
1Memory
Number of Memory Slots:
4Memory Form Factor:
DIMMMemory Form Factor:
UDIMMMemory Speed Supported:
1.60 GHzMemory Technology:
DDR3 SDRAMMaximum Memory:
32 GBVideo
Graphics Controller Manufacturer:
IntelOnboard Video:
On-board Video ChipsetAudio
Audio Channels:
7.1Network & Communication
Gigabit Ethernet:
YesOnboard Interfaces
Number of SATA Interfaces:
6Total Number of Onboard USB Ports:
6Number of Onboard USB 3.0 Ports:
2I/O Controller
RAID Supported:
YesRAID Levels:
0RAID Levels:
1RAID Levels:
5RAID Levels:
10Controller Type:
Serial ATA/600I/O Expansions
Number of Total Expansion Slots:
3Number of PCI Express x4 Slots:
1Number of PCI Express x8 Slots:
1Number of PCI Express x16 Slots:
1Total Number of PCI Express Slots:
3Interfaces/Ports
HDMI:
YesVGA:
YesDisplayPort:
YesTotal Number of USB Ports:
6Number of USB 3.0 Ports:
4Physical Characteristics
Width:
9.6"Depth:
9.6"Form Factor:
Micro ATX
