General Information
Product Type:
Server MotherboardBrand Name:
SupermicroManufacturer:
Supermicro Computer, IncProduct Model:

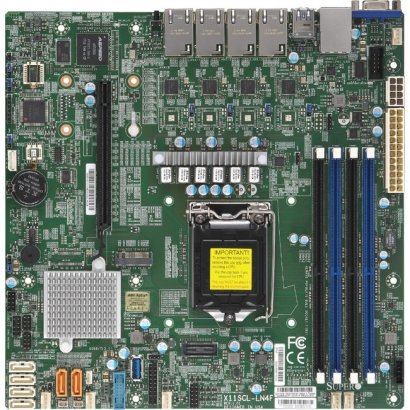

X11SCL-LN4FProduct Name:
X11SCL-LN4F Server MotherboardPackage Type:
RetailManufacturer Part Number:
MBD-X11SCL-LN4F-OManufacturer Website Address:
http://www.supermicro.comPackaged Quantity:
1Processor & Chipset
Chipset Manufacturer:
IntelProcessor Socket:
Socket H4 LGA-1151Processor Supported:
CeleronProcessor Supported:
PentiumProcessor Supported:
XeonProcessor Supported:
Core i3Total Processor Supported:
1Memory
Number of Memory Slots:
4Memory Form Factor:
DIMMMemory Form Factor:
UDIMMMemory Speed Supported:
2.67 GHzMemory Speed Supported:
2.40 GHzMemory Speed Supported:
2.13 GHzMemory Technology:
DDR4 SDRAMMaximum Memory:
128 GBVideo
Graphics Controller Manufacturer:
ASPEEDGraphics Controller Model:
AST2500Onboard Video:
On-board Video ChipsetNetwork & Communication
Gigabit Ethernet:
YesOnboard Interfaces
Number of SATA Interfaces:
6Total Number of Onboard USB Ports:
5Number of Onboard USB 2.0 Ports:
2Number of M.2 Interfaces:
1Number of Onboard USB 3.1 Ports:
3I/O Controller
RAID Supported:
YesRAID Levels:
0RAID Levels:
1RAID Levels:
5RAID Levels:
10Controller Type:
Serial ATA/600I/O Expansions
Number of Total Expansion Slots:
1Number of PCI Express x16 Slots:
1Total Number of PCI Express Slots:
1Interfaces/Ports
VGA:
YesNumber of Network (RJ-45) Ports:
4Total Number of USB Ports:
4Number of USB 2.0 Ports:
2Number of USB 3.1 Ports:
2Physical Characteristics
Width:
9.6"Depth:
9.6"Form Factor:
Micro ATXMiscellaneous
Compatibility:
Supermicro Chassis:
- SC813MFTQC-350CB2
- SC813MFTQC-R407CB
- SC512F-350B1
- SC515-350
- SC515-R407
- SC514-R407C
- SC113MTQ-R400C
- 1U Heatsink:SNK-P0046P
- SC825TQC-R740LPB
- 2U Heatsink:SNK-P0046A4
Supermicro Servers:
Package Contents:
- X11SCW-F Server Motherboard
- 1 x Motherboard Quick Reference Guide
- 6 x I/O Cables
- 1 x I/O Shield
Warranty
Limited Warranty:
1 Year
