General Information
Product Type:
Server MotherboardBrand Name:
SupermicroManufacturer:
Supermicro Computer, IncProduct Model:
X11SSV-M4FProduct Name:

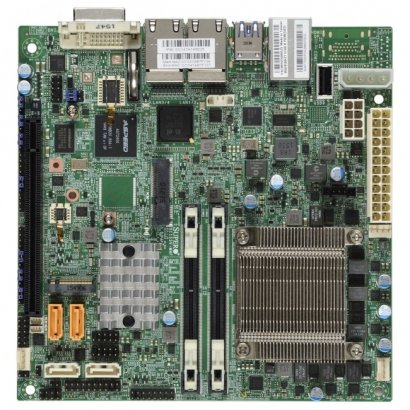

X11SSV-M4F Server MotherboardPackage Type:
RetailManufacturer Part Number:
MBD-X11SSV-M4F-OManufacturer Website Address:
http://www.supermicro.comPackaged Quantity:
1Miscellaneous
Environmentally Friendly:
YesEnvironmental Certification:
RoHSCompatibility:
Supermicro SuperChassis(s):
Package Contents:
- X11SSV-M4F Server Motherboard
- 1 x QRG
- 4 x I/O Cables
- 1 x I/O Shield
Processor & Chipset
Chipset Manufacturer:
IntelChipset Model:
C236Processor Socket:
Socket BGA-1440Memory
Number of Memory Slots:
2Memory Form Factor:
SoDIMMMemory Speed Supported:
1.87 GHzMemory Speed Supported:
2.13 GHzMemory Speed Supported:
1.60 GHzMemory Technology:
DDR4 SDRAMMaximum Memory:
32 GBVideo
Graphics Controller Manufacturer:
ASPEEDGraphics Controller Model:
AST2400Onboard Video:
On-board Video ChipsetNetwork & Communication
Gigabit Ethernet:
YesOnboard Interfaces
Number of SATA Interfaces:
4Total Number of Onboard USB Ports:
5Number of M.2 Interfaces:
1I/O Controller
RAID Supported:
YesRAID Levels:
10RAID Levels:
5RAID Levels:
1RAID Levels:
0Controller Type:
Serial ATA/600I/O Expansions
Number of Total Expansion Slots:
2Total Number of PCI Express Slots:
1Interfaces/Ports
DVI:
YesTotal Number of USB Ports:
4Number of USB 3.0 Ports:
4Integrated Processor
Integrated Processor Manufacturer:
IntelIntegrated Processor Type:
XeonIntegrated Processor Model:
E3-1585 v5Integrated Processor Speed:
3.50 GHzIntegrated Processor Core:
Quad-core (4 Core)Physical Characteristics
Width:
6.7"Depth:
6.7"Form Factor:
Mini ITXWarranty
Limited Warranty:
1 Year
